Products

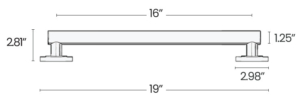

• Center to Center: 16
• Overall Length: 19
• Cavity Length: 16
• Cavity Depth: 0.5
• Cavity accepts max 0.375 material
• Bar Diameter: 1.25
• Projection from Wall: 2.81
• Wall Mount Diameter: 2.98
• Material Spec: 304 SS, 20 Gauge
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
ITEM # 05ST16PC

BRUSHED NICKEL

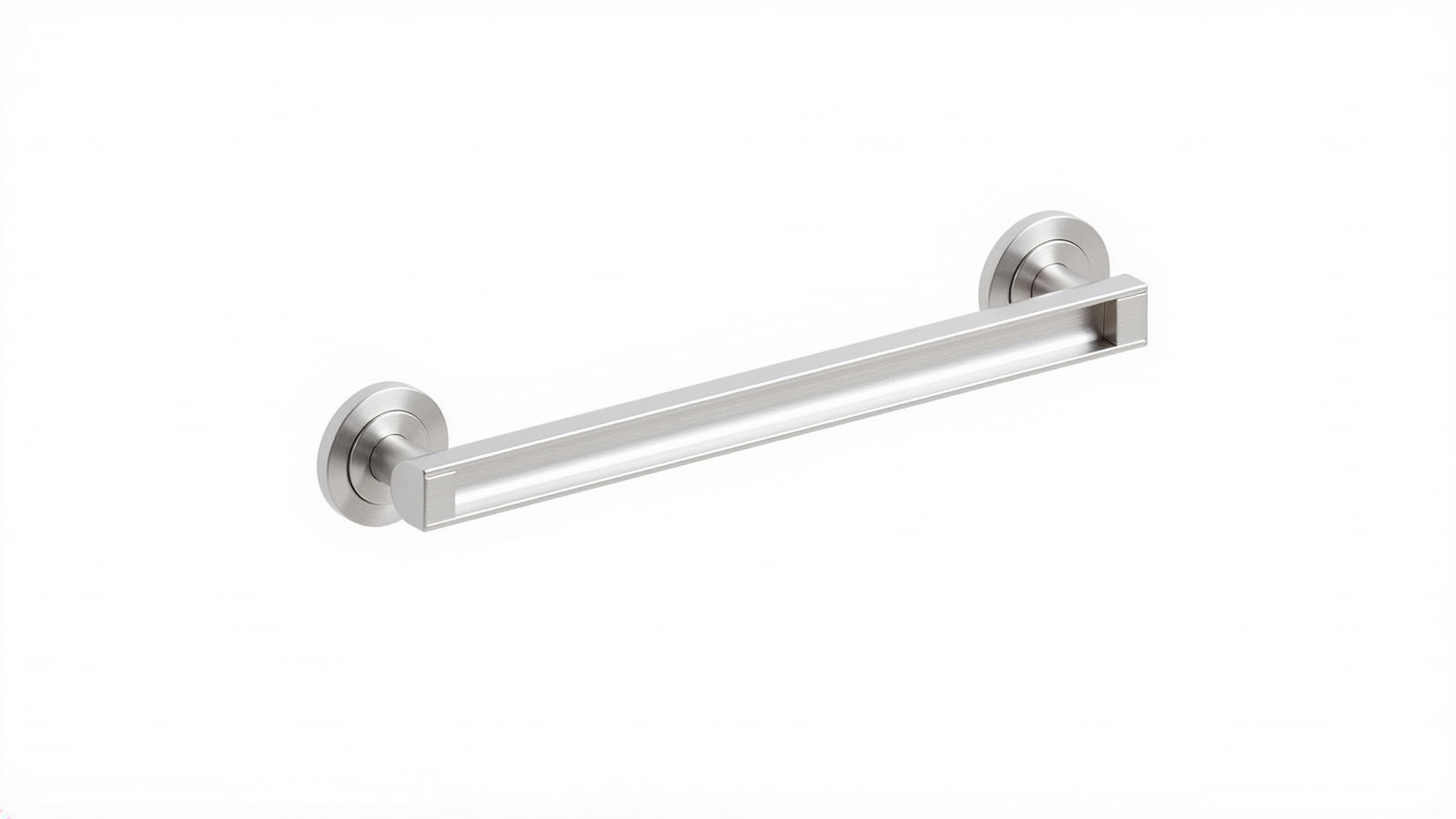

ITEM # 05ST16BN

MATTE BLACK
ITEM # 05ST16MB

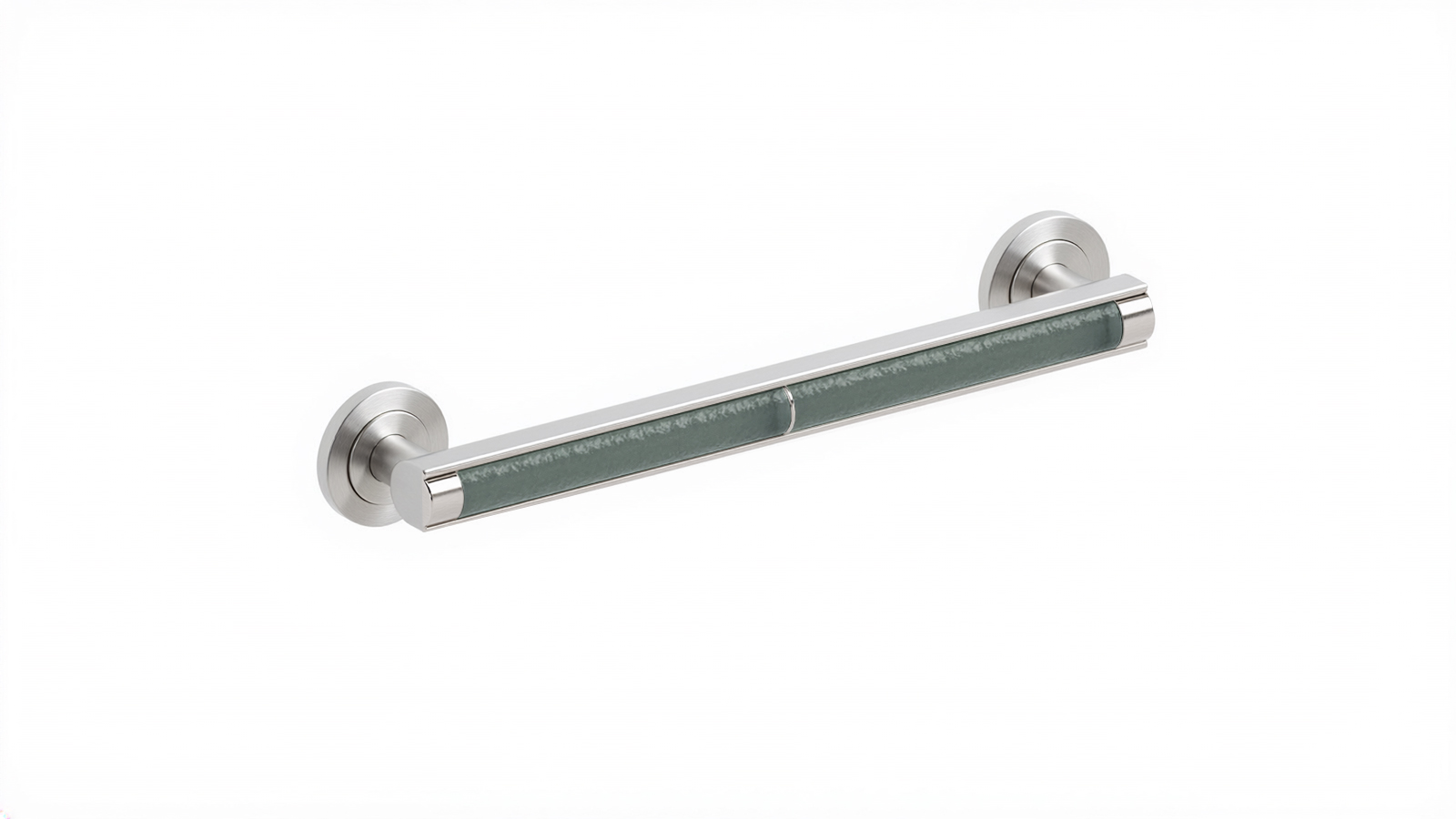

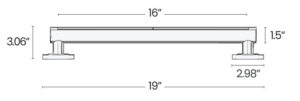

• Center to Center: 16
• Overall Length: 19
• Insert Length: 16
• Bar Diameter: 1.5
• Projection from Wall: 3.06
• Wall Mount Diameter: 2.98
• Material Spec: 304 SS, 20 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME

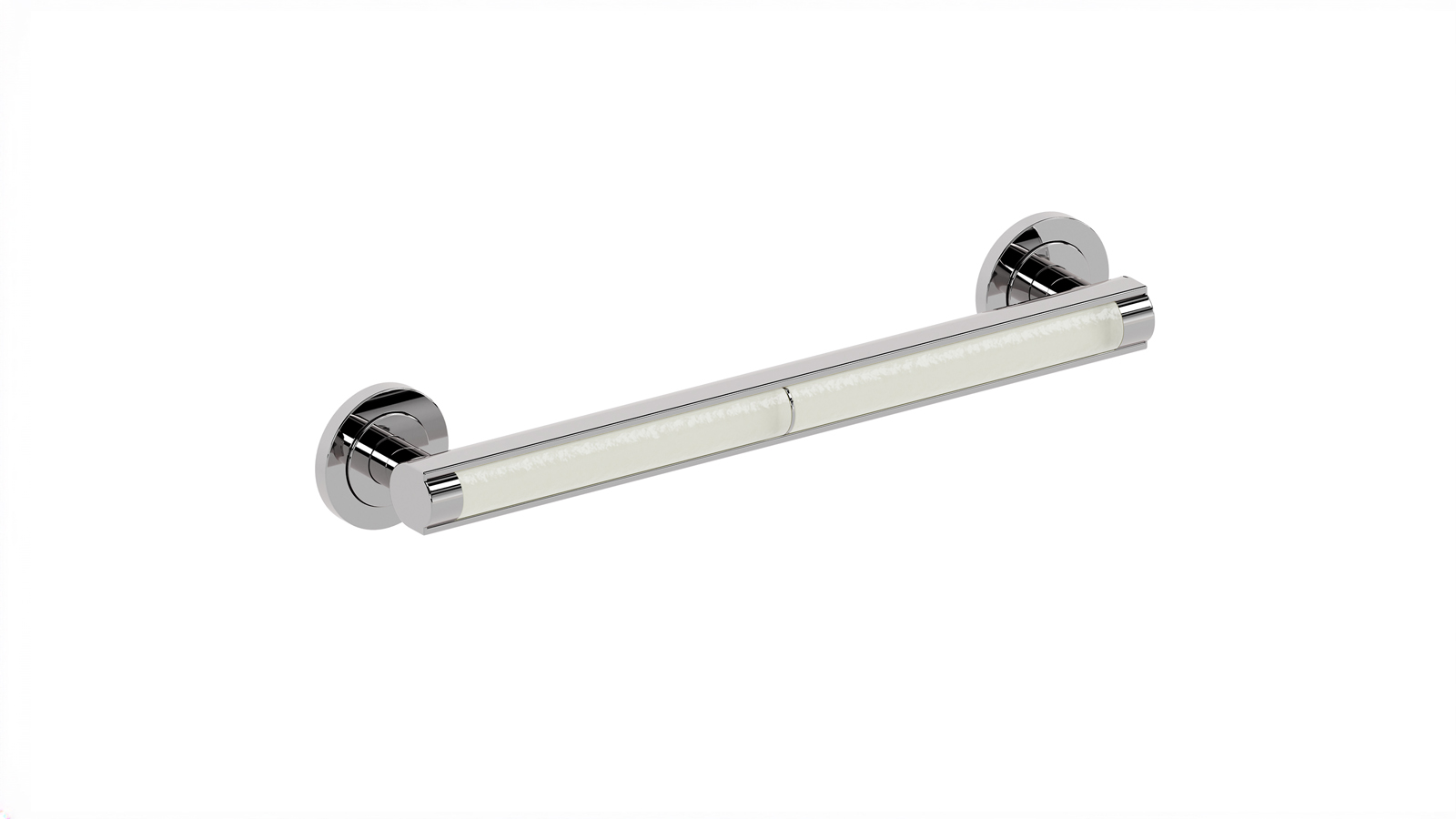

05ST16PC-GLFR FROST
05ST16PC-GLSE SEA
05ST16PC-GLSK SKY
05ST16PC-GLSA SAND
05ST16PC-GLTW TWILIGHT
05ST16PC-GLNI NIGHT

BRUSHED NICKEL
05ST16BN-GLFR FROST
05ST16BN-GLSE SEA
05ST16BN-GLSK SKY
05ST16BN-GLSA SAND
05ST16BN-GLTW TWILIGHT
05ST16BN-GLNI NIGHT

MATTE BLACK
05ST16MB-GLFR FROST
05ST16MB-GLSE SEA
05ST16MB-GLSK SKY
05ST16MB-GLSA SAND
05ST16MB-GLTW TWILIGHT
05ST16MB-GLNI NIGHT

• Center to Center: 18
• Overall Length: 21
• Cavity Length: 18
• Cavity Depth: 0.5
• Cavity accepts max 0.375 material
• Bar Diameter: 1.25
• Projection from Wall: 2.81
• Wall Mount Diameter: 2.98
• Material Spec: 304 SS, 20 Gauge
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
ITEM # 05ST18PC

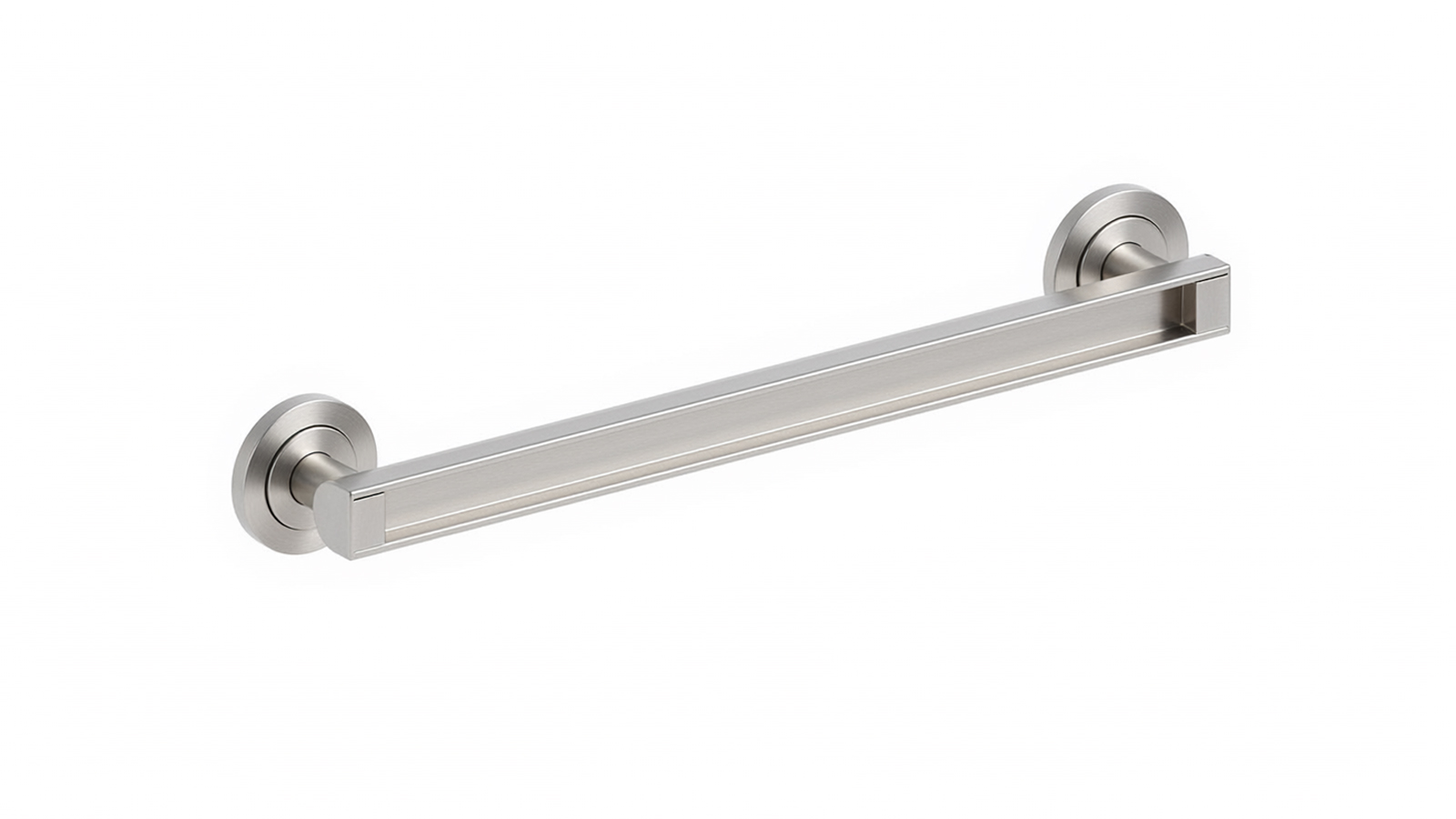

BRUSHED NICKEL
ITEM # 05ST18BN

MATTE BLACK
ITEM # 05ST18MB

• Center to Center: 18
• Overall Length: 21
• Insert Length: 18
• Bar Diameter: 1.5
• Projection from Wall: 3.06
• Wall Mount Diameter: 2.98
• Material Spec: 304 SS, 20 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
05ST18PC-GLFR FROST

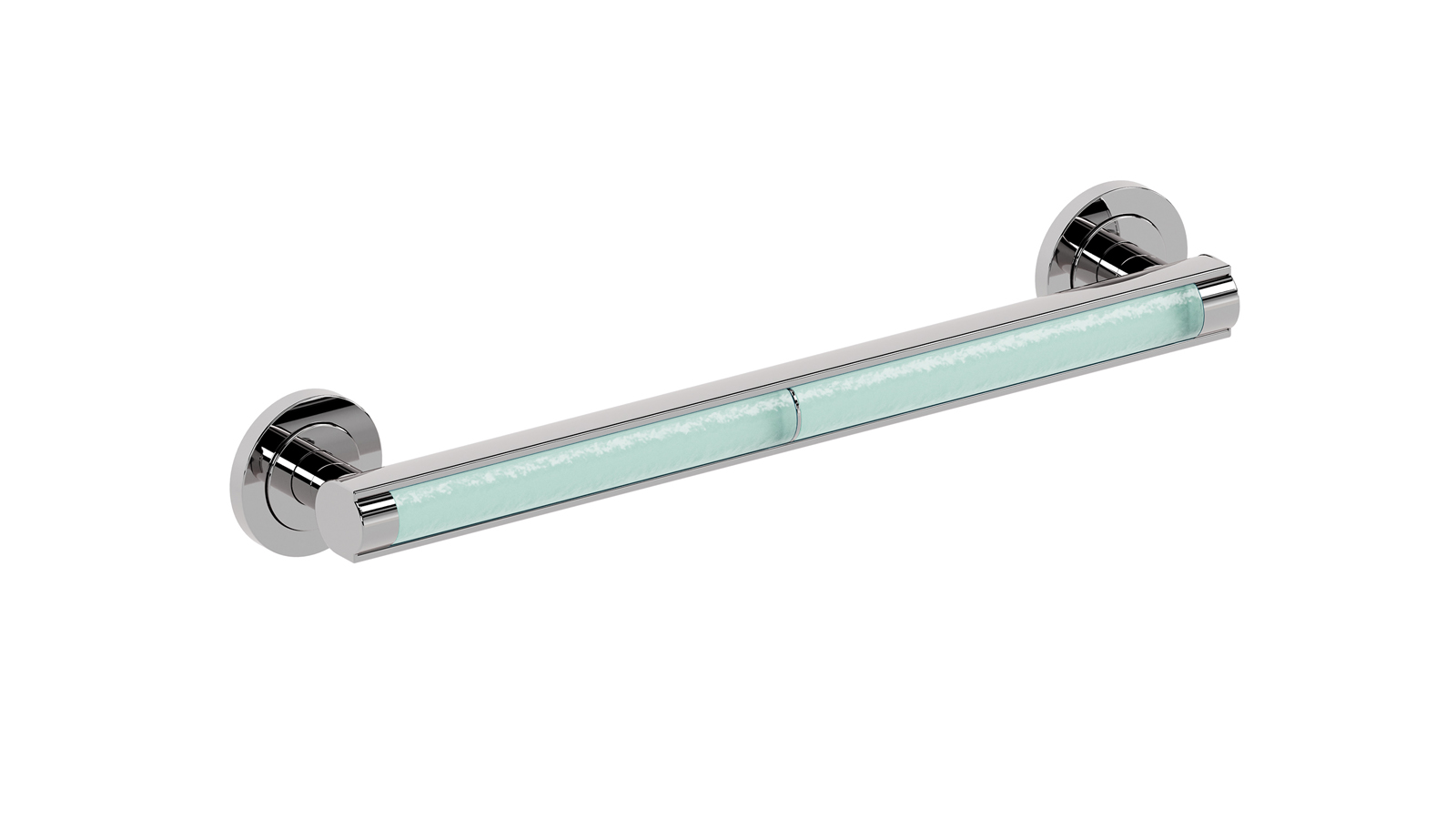

05ST18PC-GLSE SEA
05ST18PC-GLSK SKY
05ST18PC-GLSA SAND
05ST18PC-GLTW TWILIGHT
05ST18PC-GLNI NIGHT

BRUSHED NICKEL
05ST18BN-GLFR FROST
05ST18BN-GLSE SEA
05ST18BN-GLSK SKY
05ST18BN-GLSA SAND
05ST18BN-GLTW TWILIGHT
05ST18BN-GLNI NIGHT

MATTE BLACK
05ST18MB-GLFR FROST
05ST18MB-GLSE SEA
05ST18MB-GLSK SKY
05ST18MB-GLSA SAND
05ST18MB-GLTW TWILIGHT
05ST18MB-GLNI NIGHT

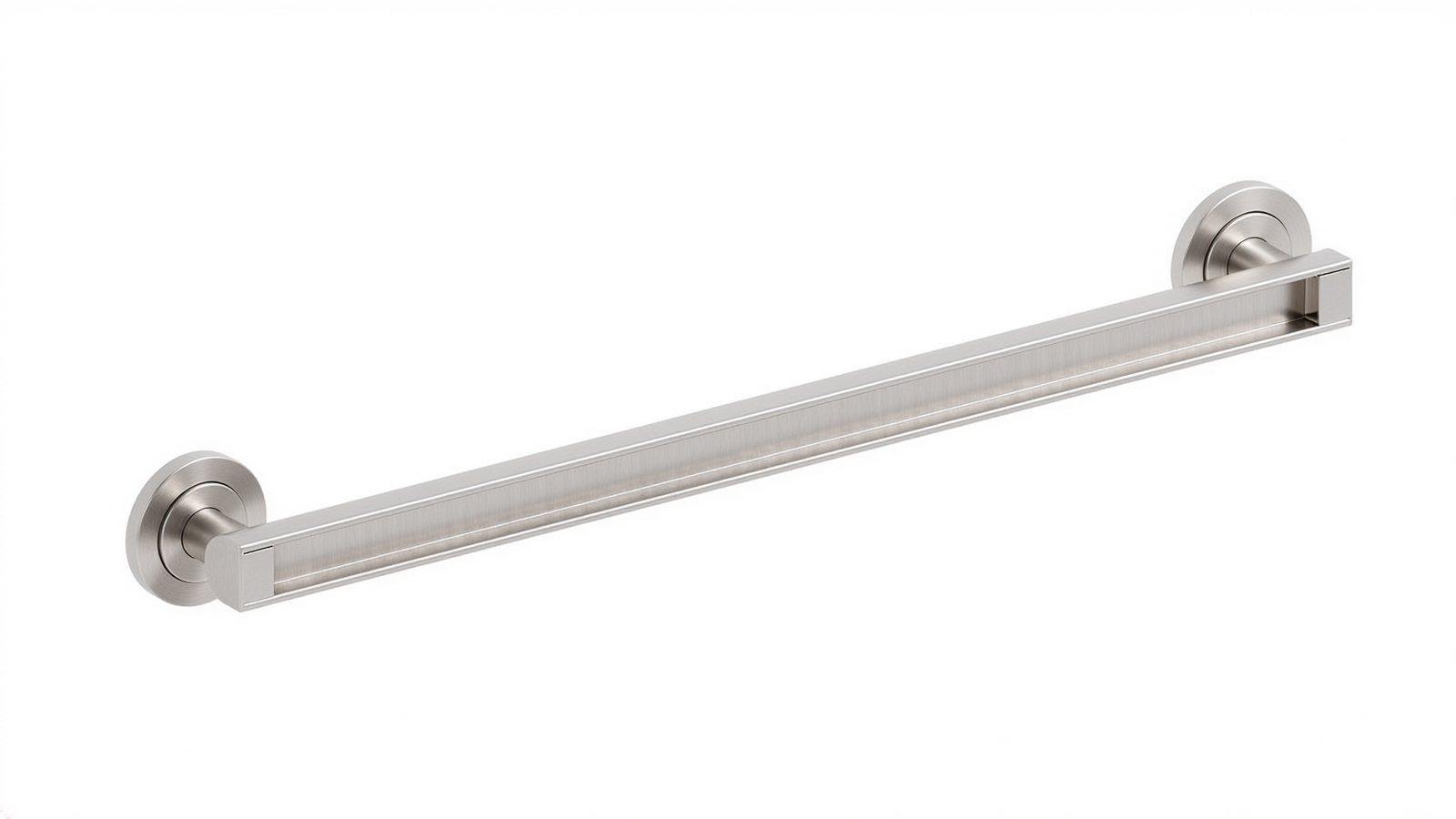

• Center to Center: 24
• Overall Length: 27
• Cavity Length: 24
• Cavity Depth: 0.5
• Cavity accepts max 0.375 material
• Bar Diameter: 1.25
• Projection from Wall: 2.81
• Wall Mount Diameter: 2.98
• Material Spec: 304 SS, 20 Gauge
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
ITEM # 05ST24PC

BRUSHED NICKEL
ITEM # 05ST24BN

MATTE BLACK
ITEM # 05ST24MB

• Center to Center: 24
• Overall Length: 27
• Insert Length: 24
• Bar Diameter: 1.5
• Projection from Wall: 3.06
• Wall Mount Diameter: 2.98
• Material Spec: 304 SS, 20 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
05ST24PC-GLFR FROST
05ST24PC-GLSE SEA
05ST24PC-GLSK SKY

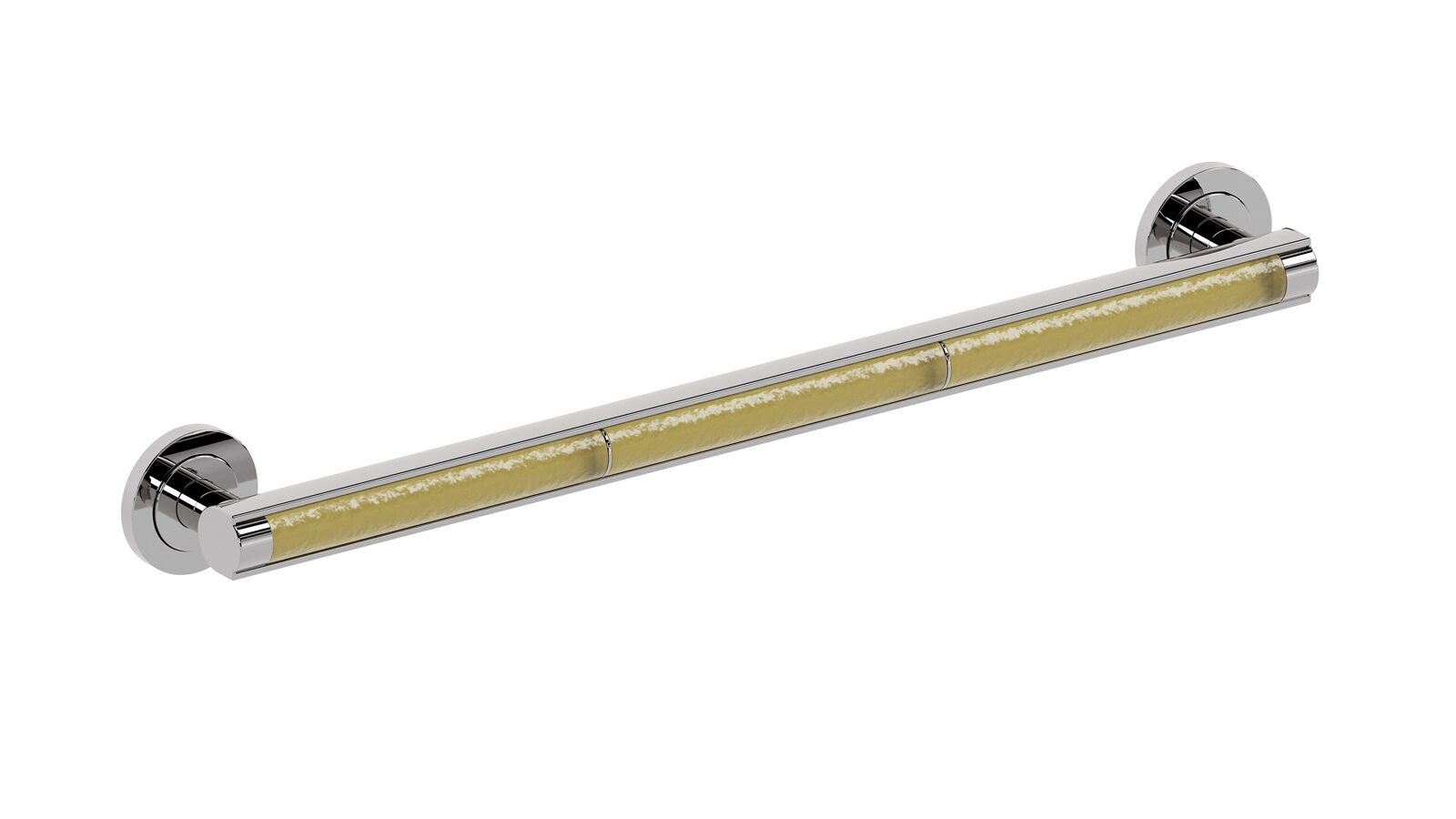

05ST24PC-GLSA SAND
05ST24PC-GLTW TWILIGHT
05ST24PC-GLNI NIGHT

BRUSHED NICKEL
05ST24BN-GLFR FROST
05ST24BN-GLSE SEA
05ST24BN-GLSK SKY
05ST24BN-GLSA SAND
05ST24BN-GLTW TWILIGHT

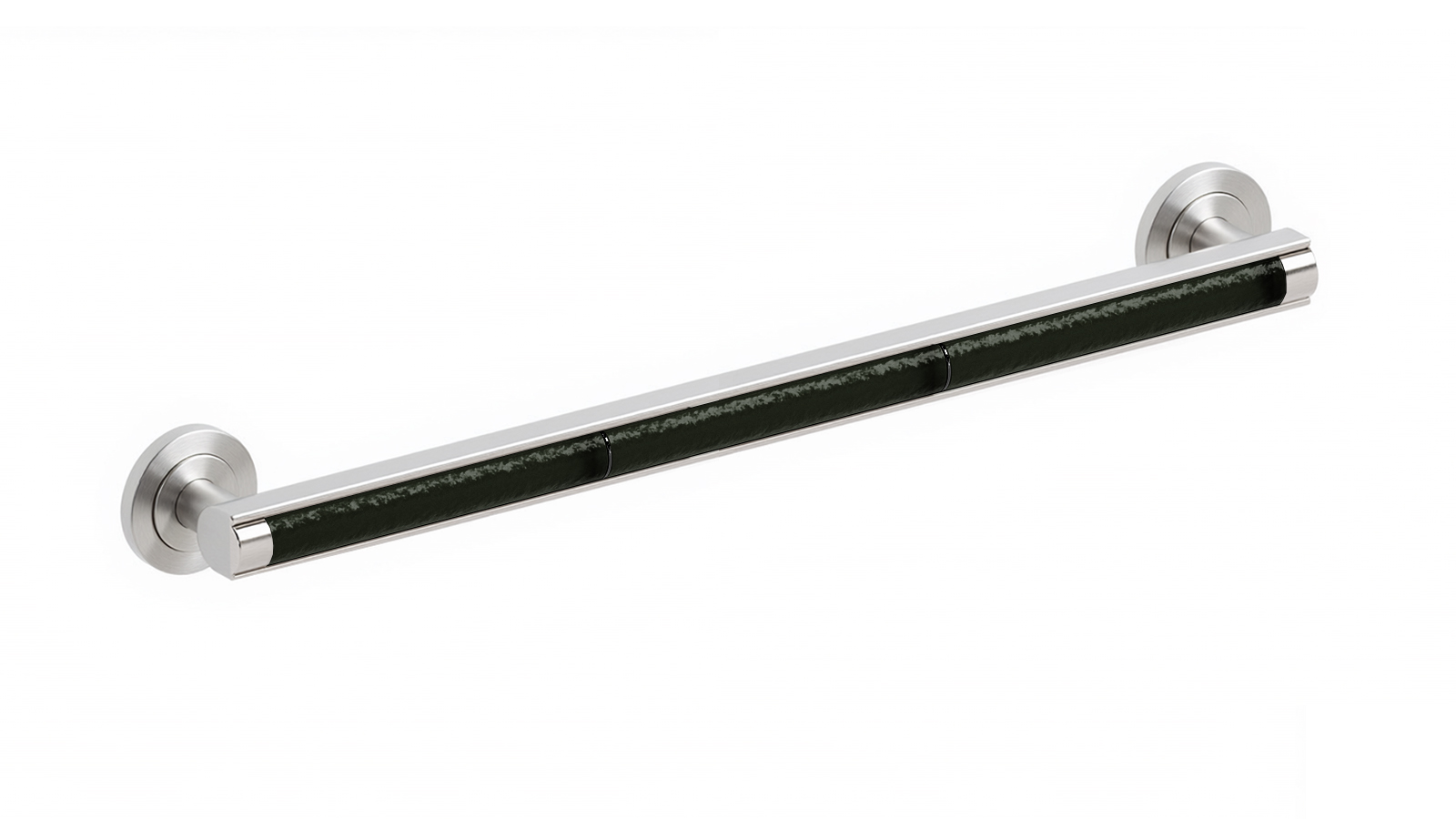

05ST24BN-GLNI NIGHT

MATTE BLACK
05ST24MB-GLFR FROST
05ST24MB-GLSE SEA
05ST24MB-GLSK SKY
05ST24MB-GLSA SAND

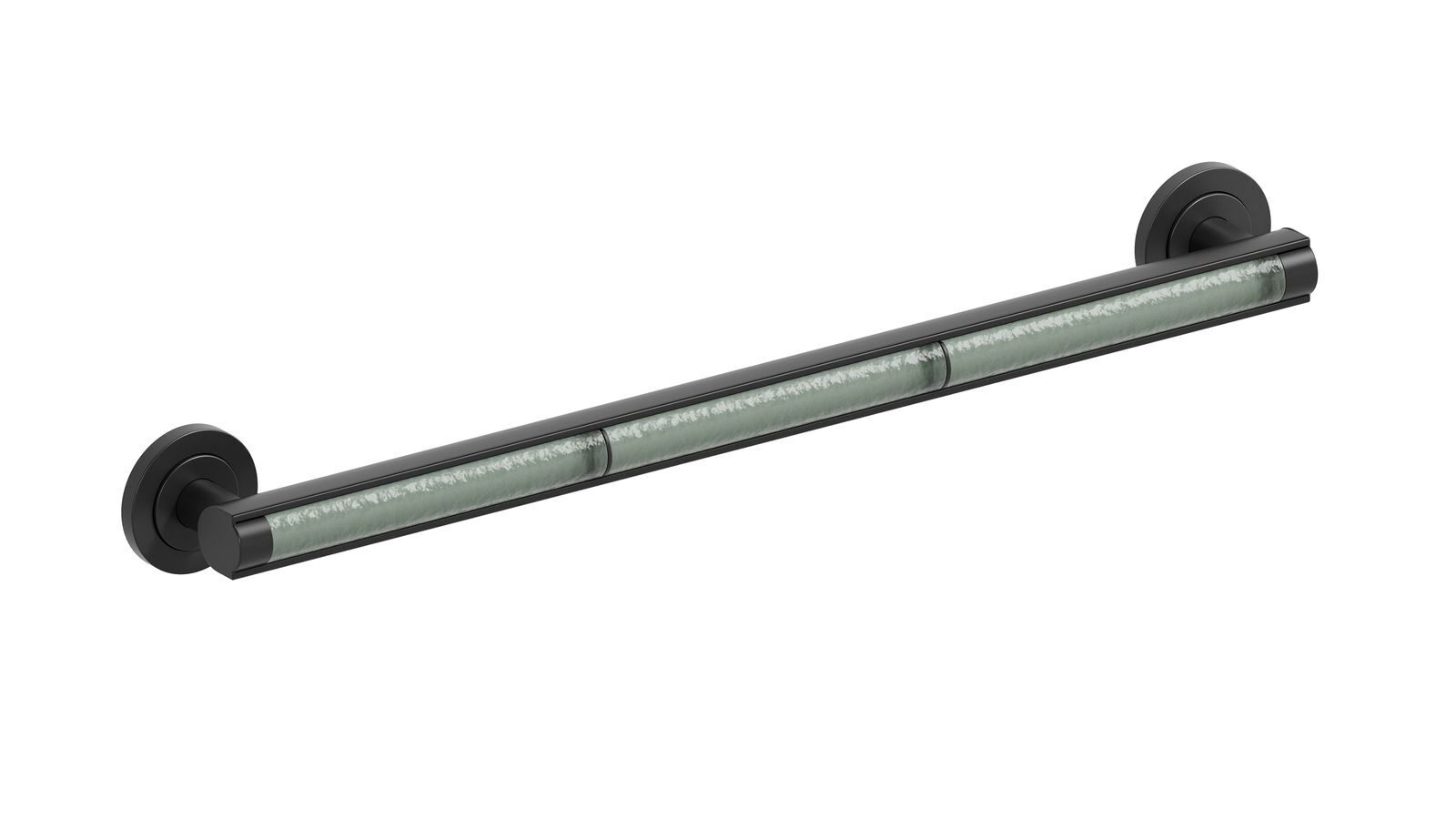

05ST24MB-GLTW TWILIGHT
05ST24MB-GLNI NIGHT

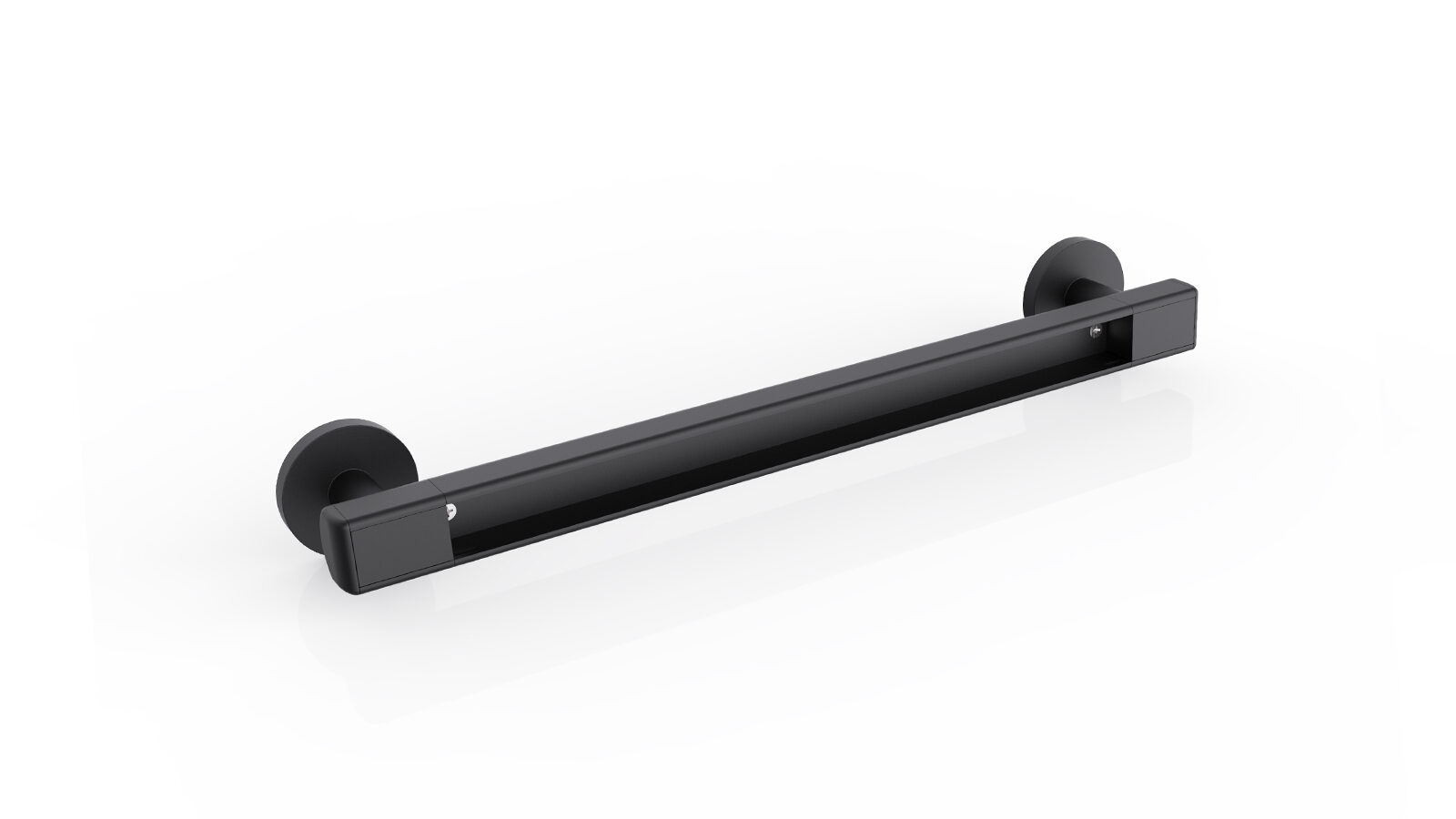

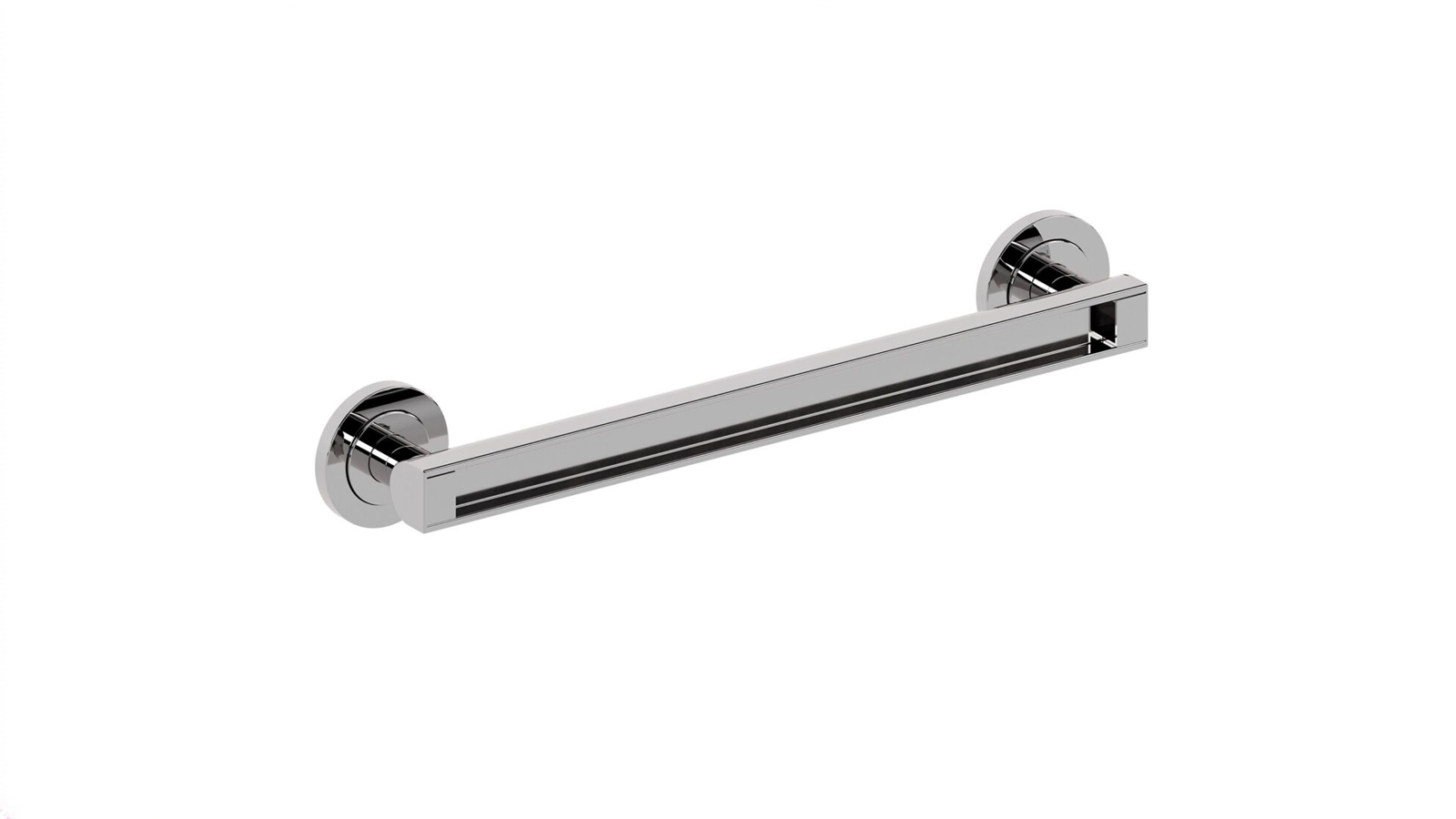

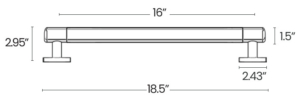

• Center to Center: 16
• Overall Length: 18.5
• Cavity Length with End Inserts: 14.375
• Cavity Length without End Inserts: 17.675
• Cavity Depth: 0.75
• Cavity accepts max 0.5 material
• Bar Diameter: 1.5
• Projection from Wall: 2.95
• Wall Mount Diameter: 2.43
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

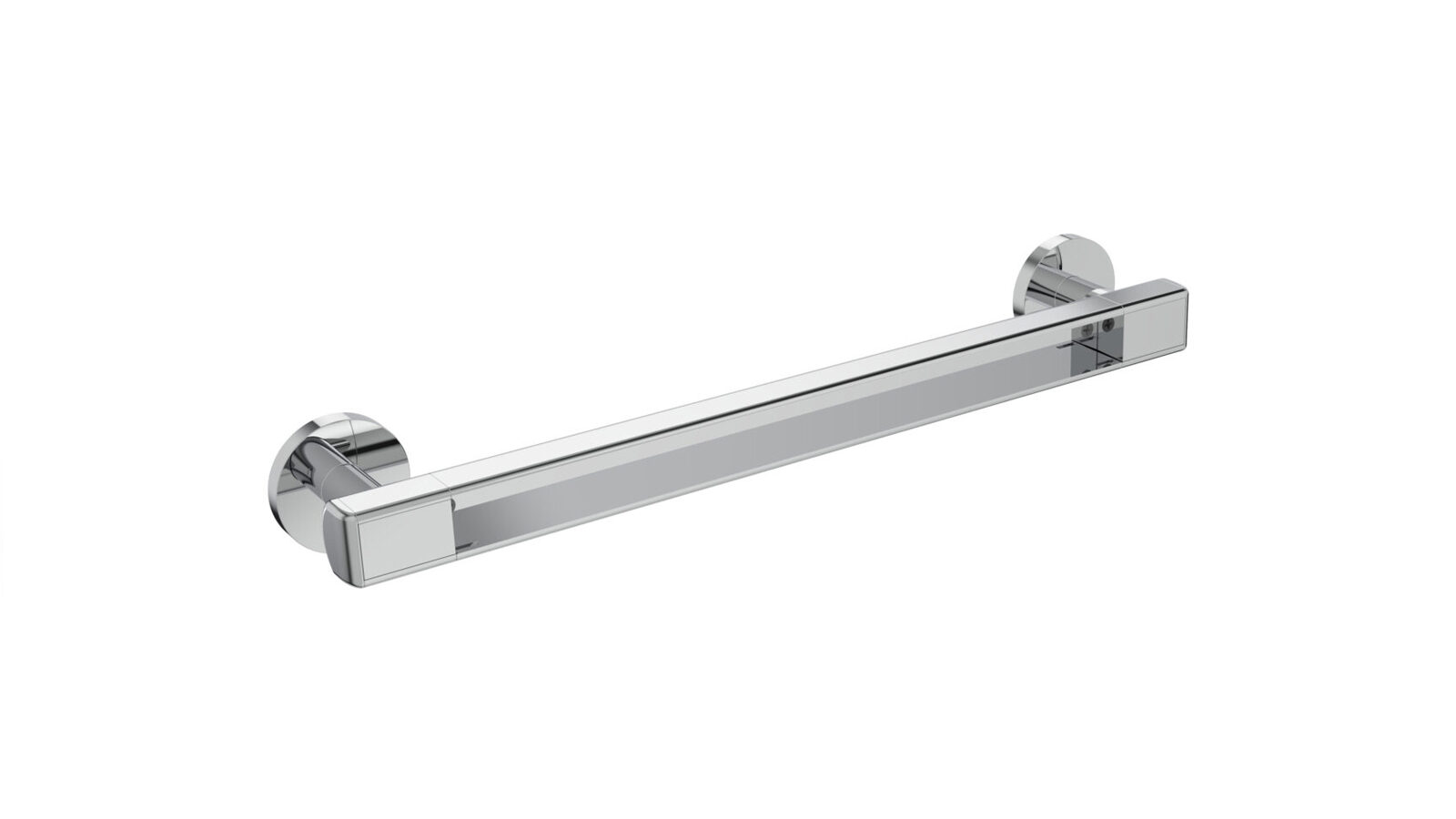

POLISHED CHROME
ITEM # 01ST16PC

BRUSHED NICKEL

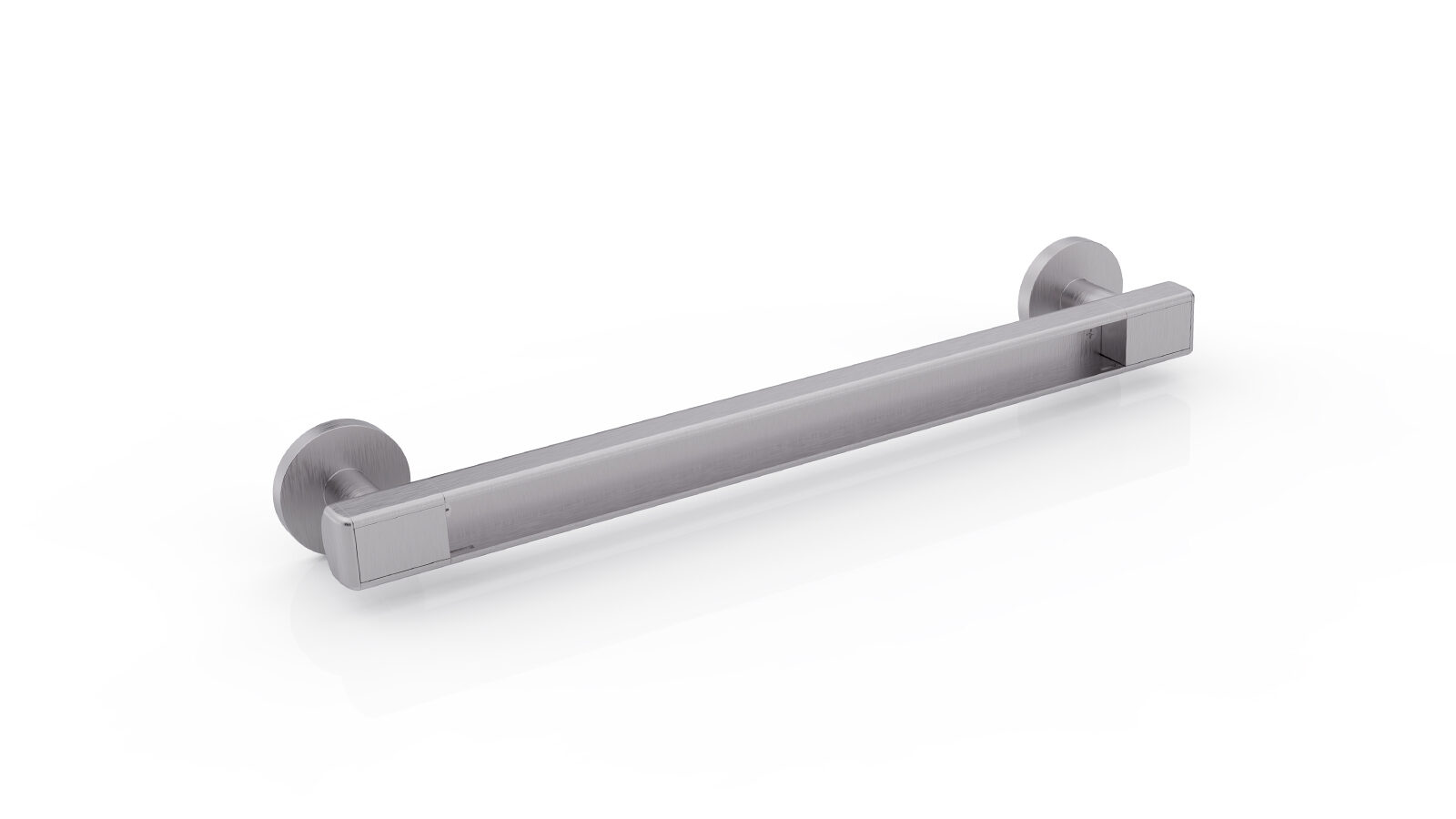

ITEM # 01ST16BN

MATTE BLACK
ITEM # 01ST16MB

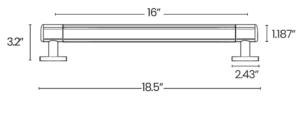

• Center to Center: 16
• Overall Length: 18.5
• Insert Length: 14.375
• Bar Diameter: 1.187
• Projection from Wall: 3.2
• Wall Mount Diameter: 2.43
• Material Spec: 304 SS, 8 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME

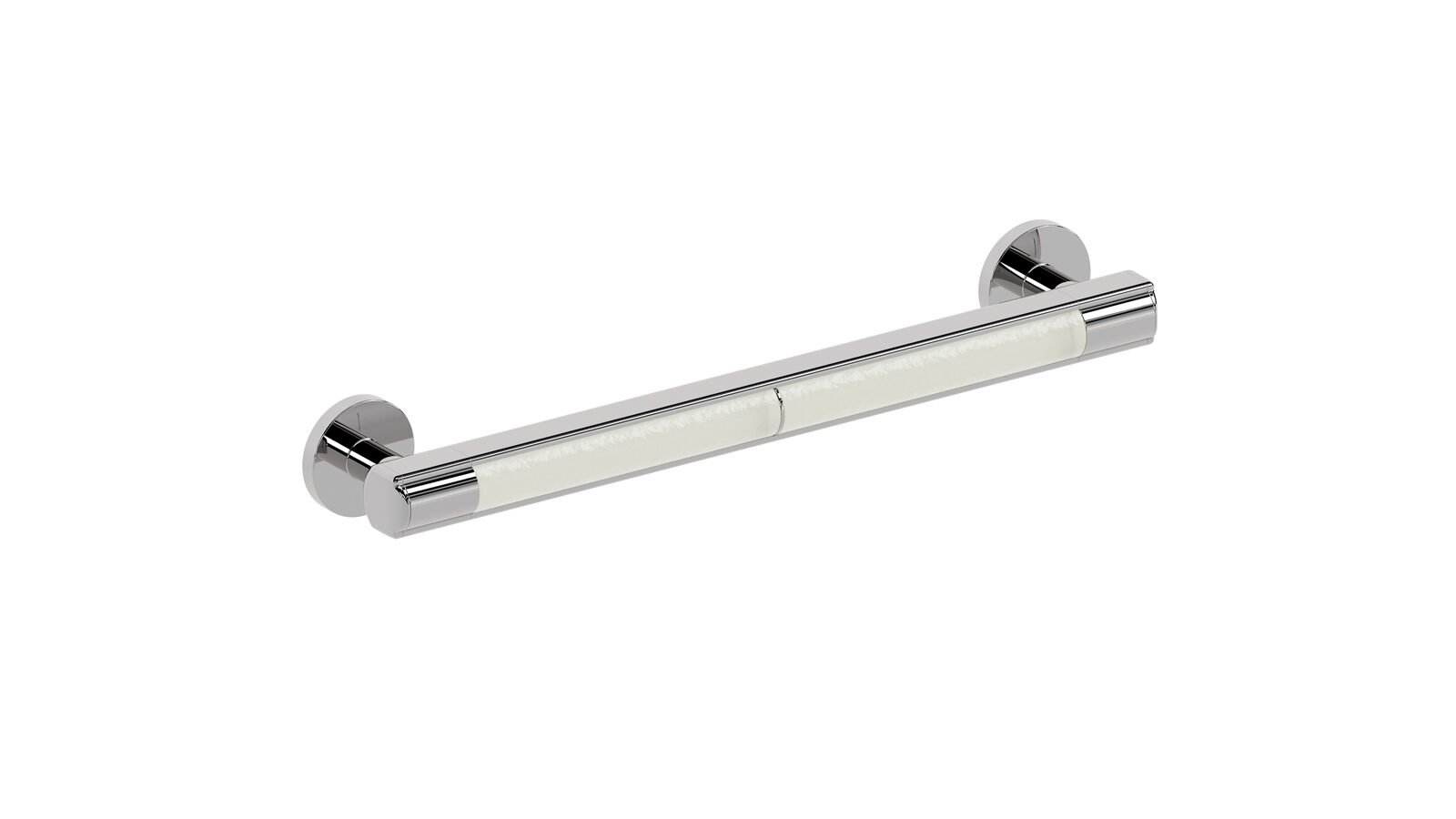

01ST16PC-GLFR FROST
01ST16PC-GLSE SEA
01ST16PC-GLSK SKY
01ST16PC-GLSA SAND
01ST16PC-GLTW TWILIGHT
01ST16PC-GLNI NIGHT

BRUSHED NICKEL
01ST16BN-GLFR FROST
01ST16BN-GLSE SEA
01ST16BN-GLSK SKY
01ST16BN-GLSA SAND

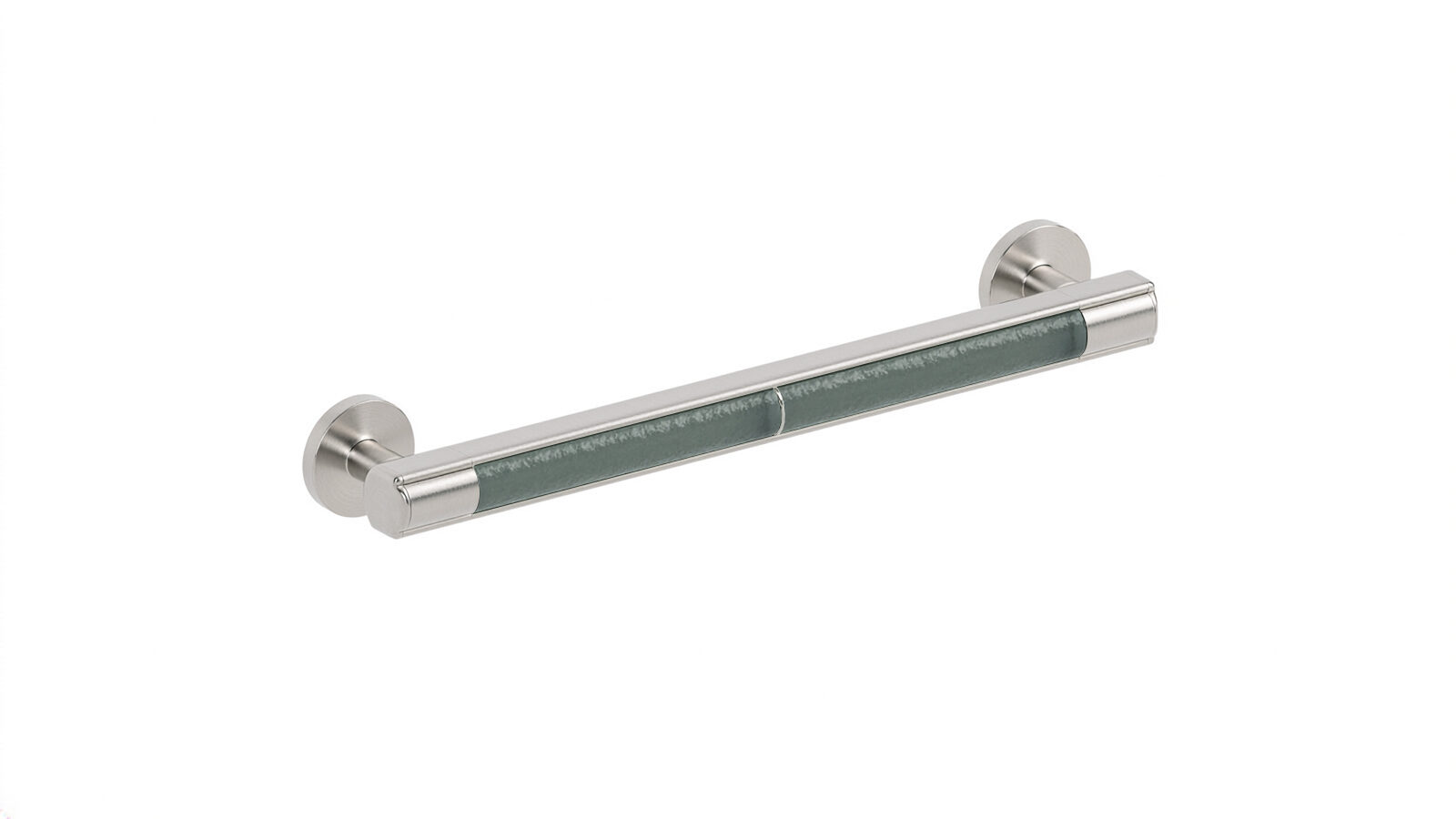

01ST16BN-GLTW TWILIGHT
01ST16BN-GLNI NIGHT

MATTE BLACK

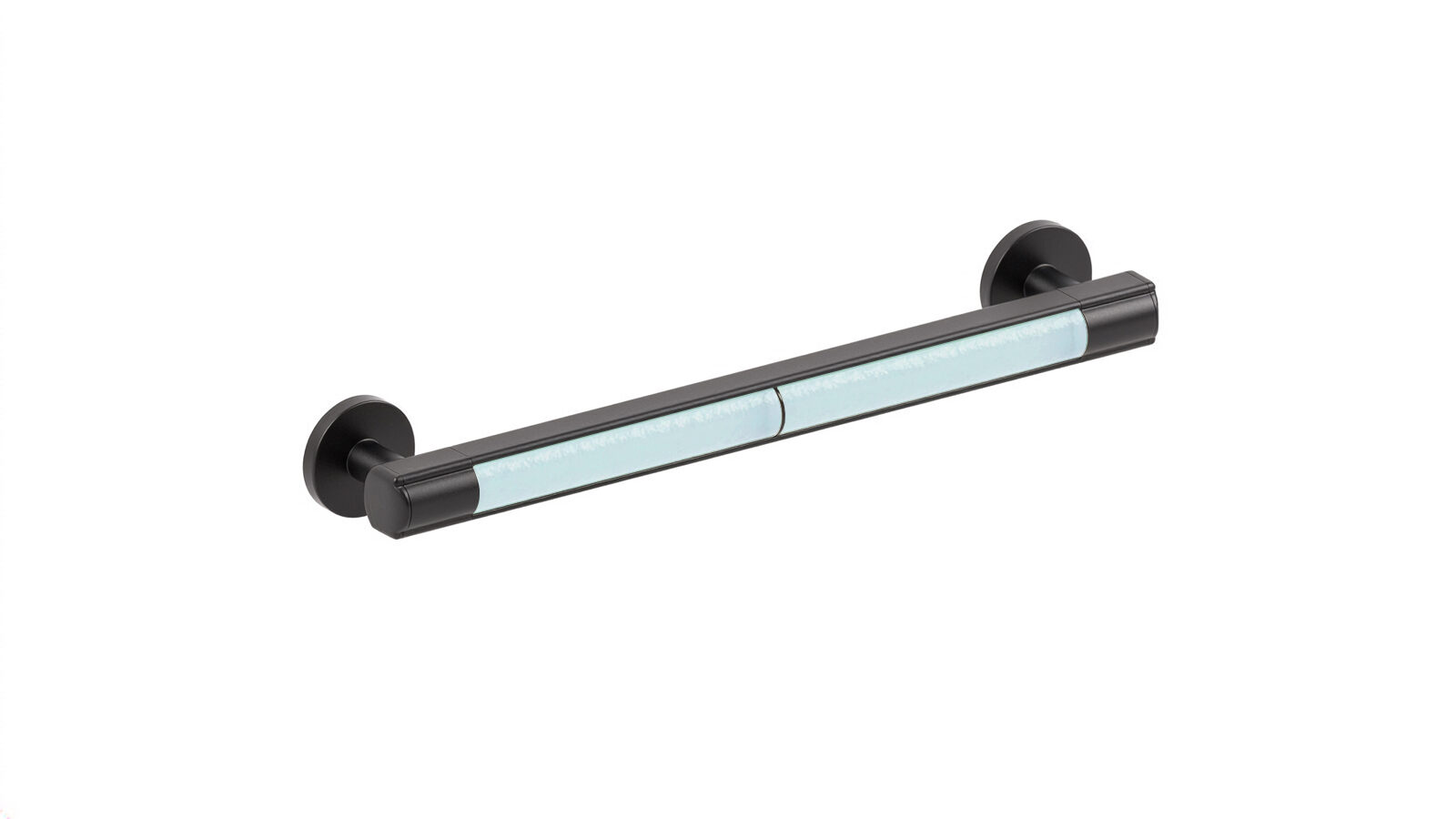

01ST16MB-GLFR FROST
01ST16MB-GLSE SEA
01ST16MB-GLSK SKY
01ST16MB-GLSA SAND
01ST16MB-GLTW TWILIGHT
01ST16MB-GLNI NIGHT

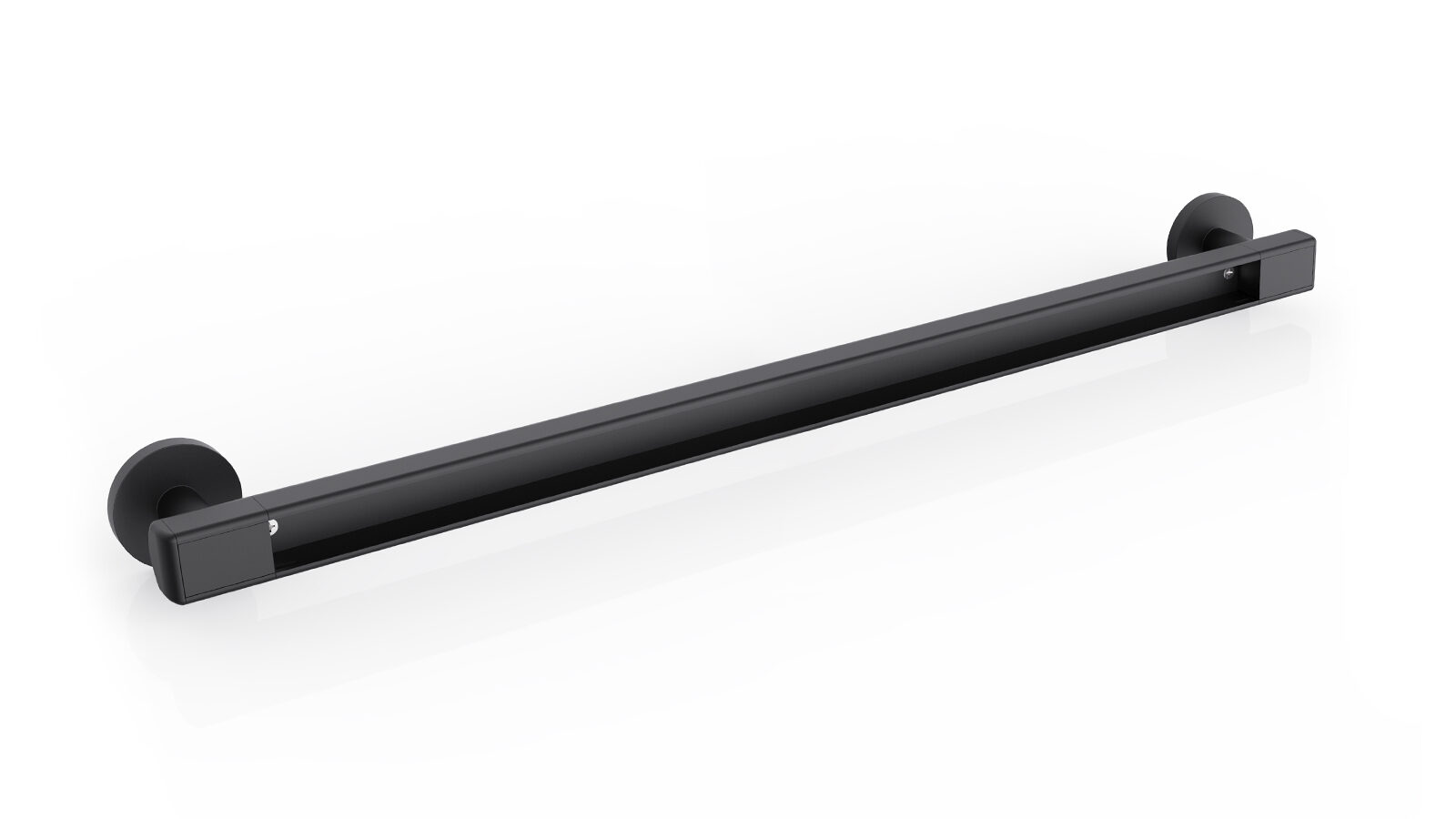

• Center to Center: 24
• Overall Length: 26.5
• Cavity Length with End Inserts: 22.375
• Cavity Length without End Inserts: 25.675
• Cavity Depth: 0.75
• Cavity accepts max 0.5 material
• Bar Diameter: 1.5
• Projection from Wall: 2.95
• Wall Mount Diameter: 2.43
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME

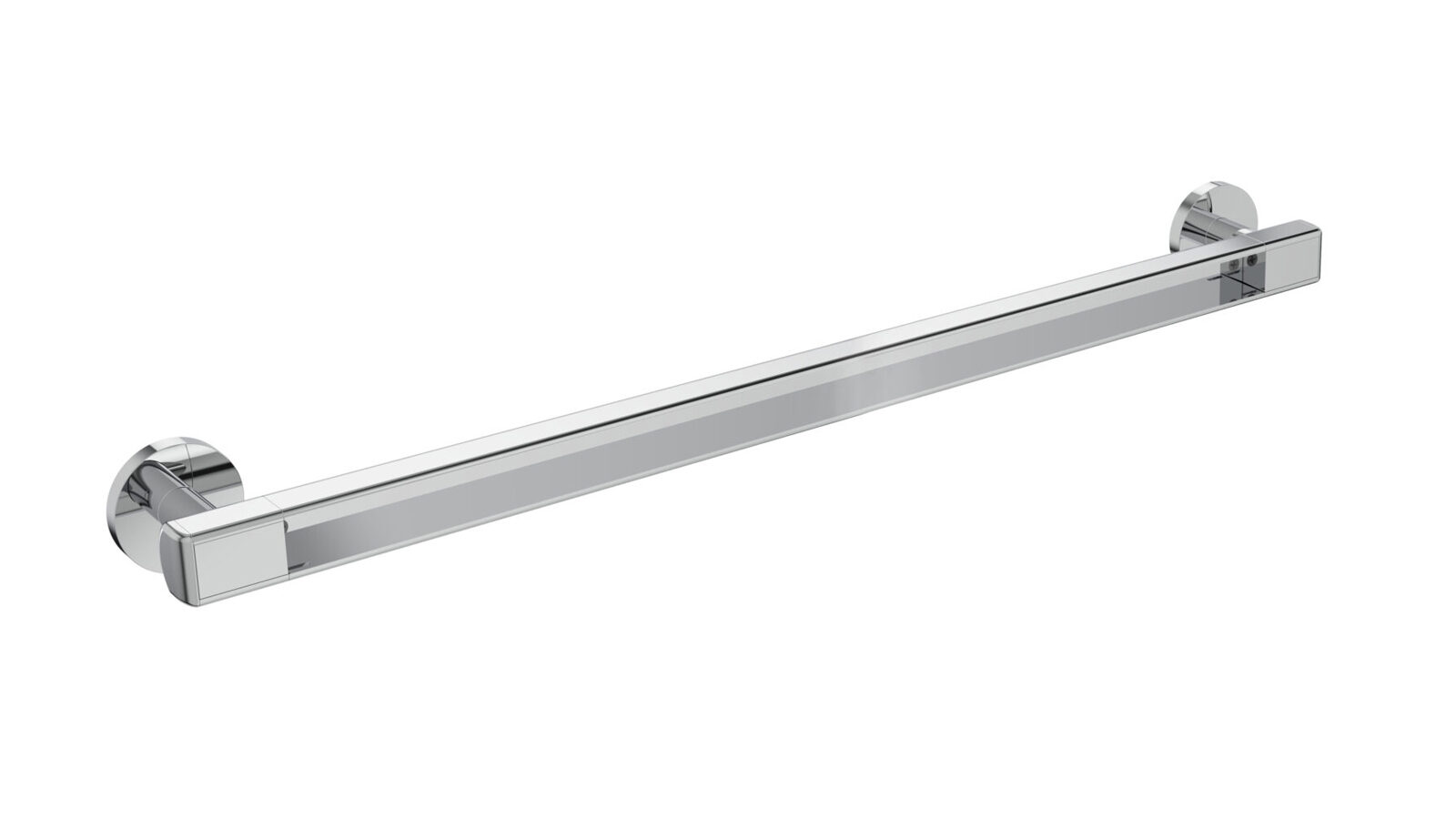

ITEM # 01ST24PC

BRUSHED NICKEL

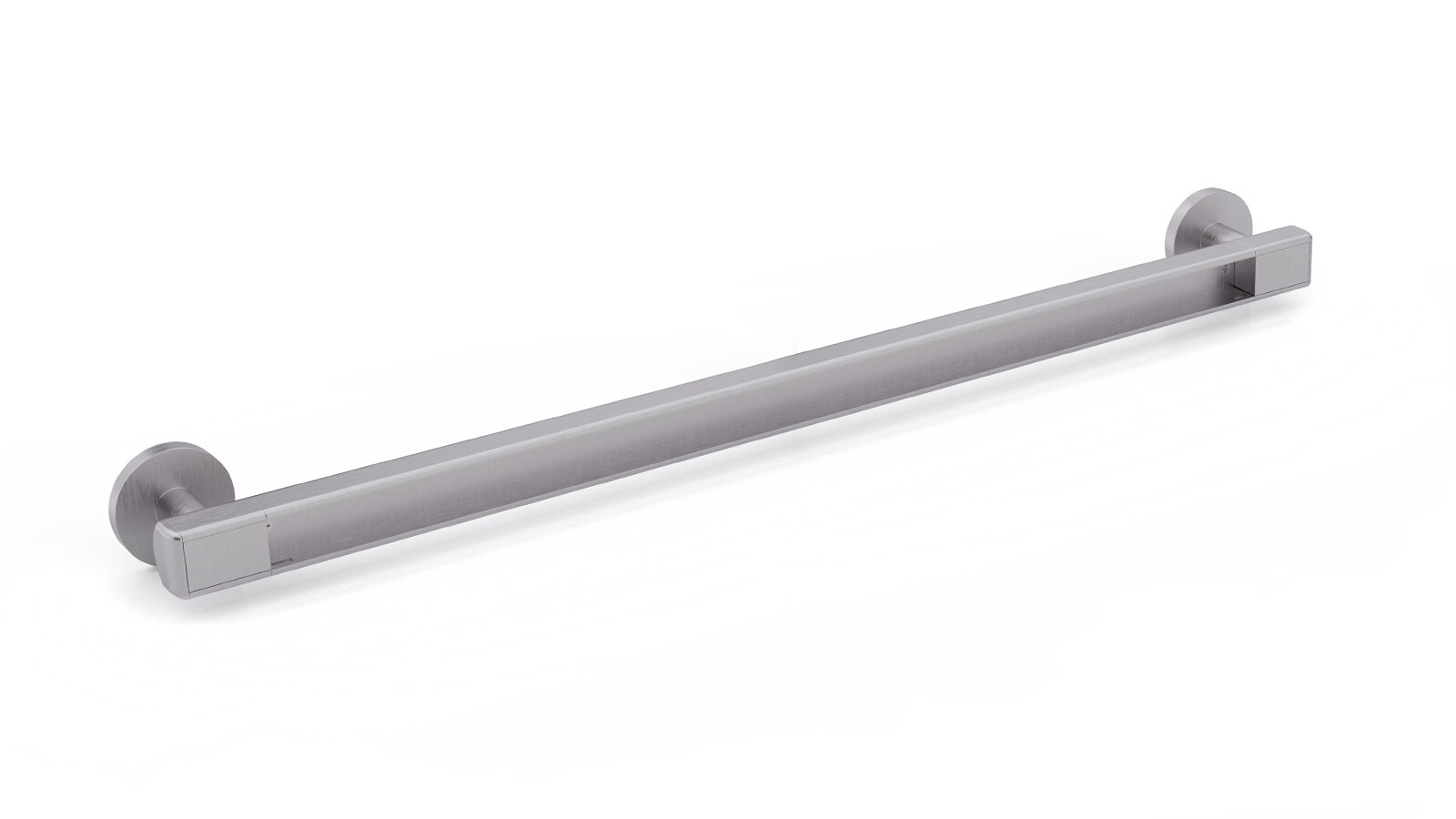

ITEM # 01ST24BN

MATTE BLACK
ITEM # 01ST24MB

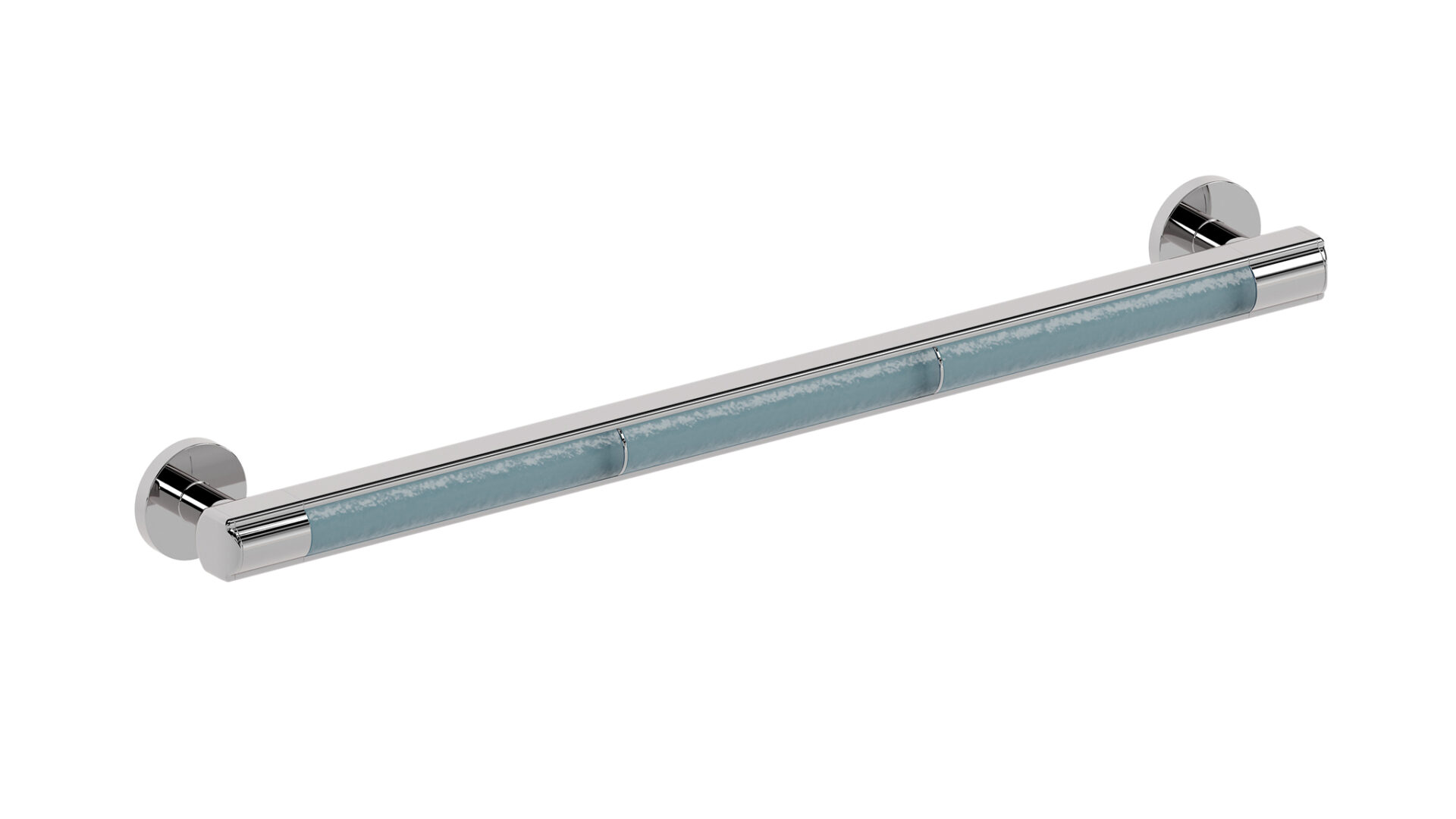

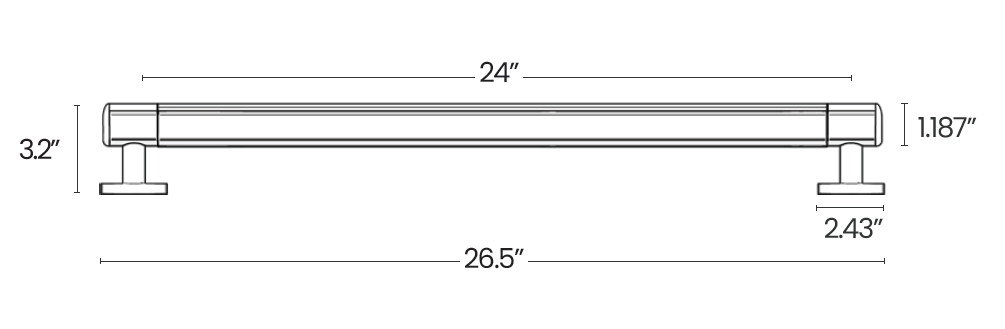

• Center to Center: 24
• Overall Length: 26.5
• Insert Length: 22.375
• Bar Diameter: 1.187
• Projection from Wall: 3.2
• Wall Mount Diameter: 2.43
• Material Spec: 304 SS, 8 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
01ST24PC-GLFR FROST
01ST24PC-GLSE SEA
01ST24PC-GLSK SKY
01ST24PC-GLSA SAND
01ST24PC-GLTW TWILIGHT
01ST24PC-GLNI NIGHT

BRUSHED NICKEL
01ST24BN-GLFR FROST
01ST24BN-GLSE SEA
01ST24BN-GLSK SKY
01ST24BN-GLSA SAND
01ST24BN-GLTW TWILIGHT

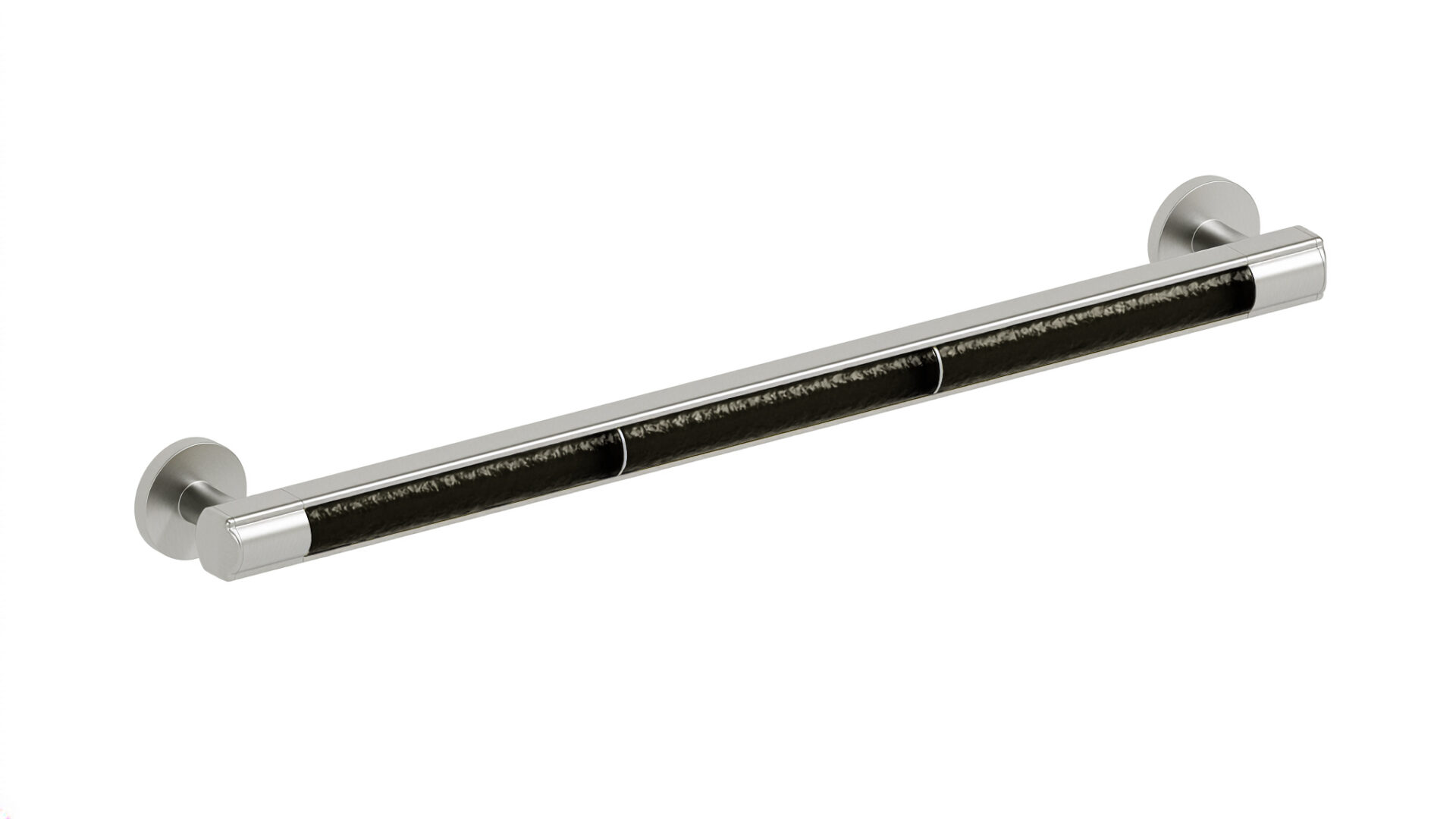

01ST24BN-GLNI NIGHT

MATTE BLACK
01ST24MB-GLFR FROST
01ST24MB-GLSE SEA
01ST24MB-GLSK SKY

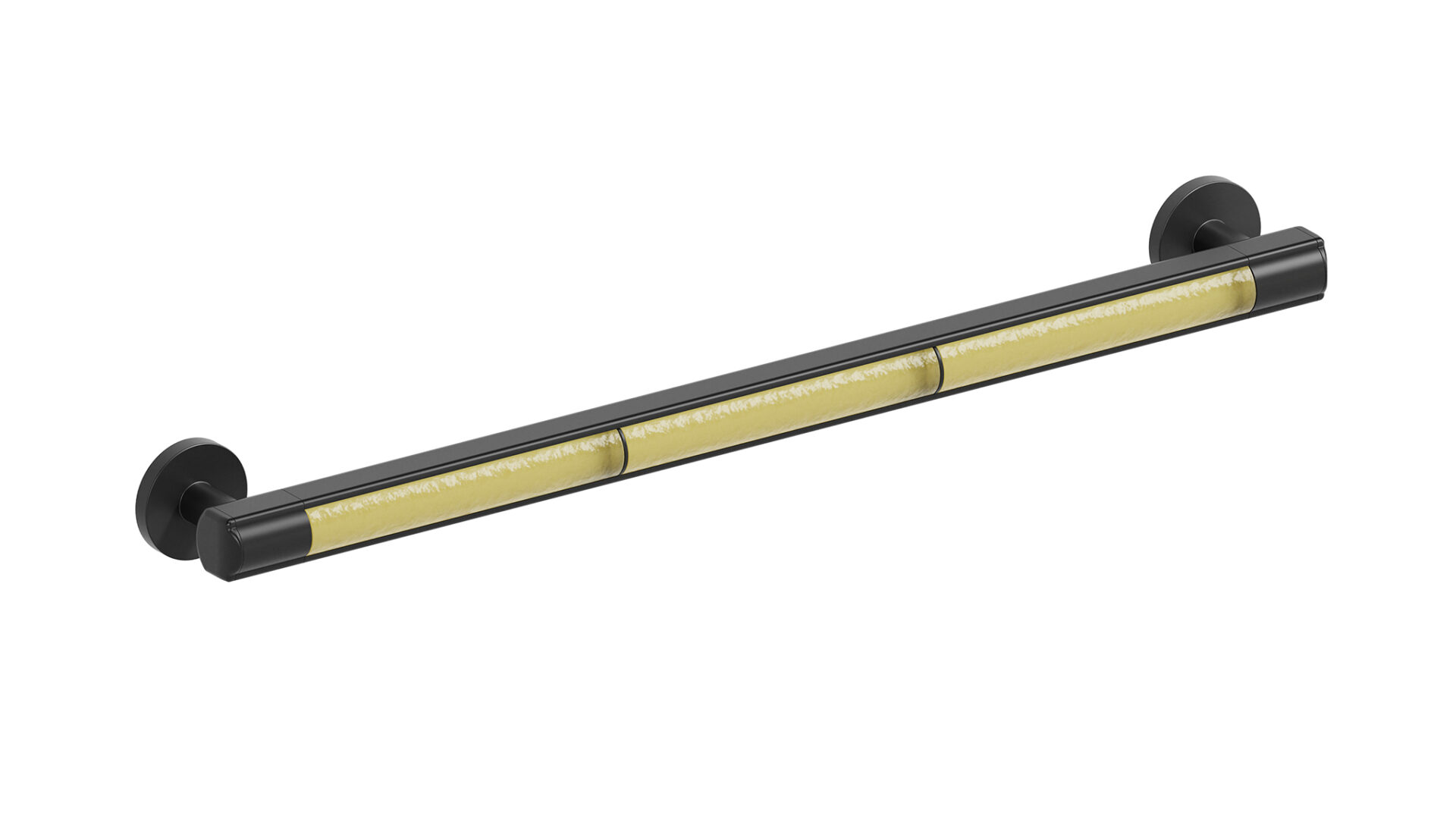

01ST24MB-GLSA SAND
01ST24MB-GLTW TWILIGHT
01ST24MB-GLNI NIGHT

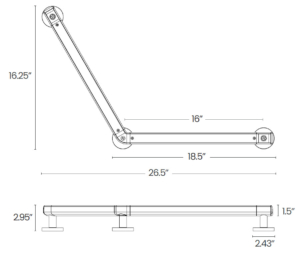

• Center to Center: 16 x 16
• Overall Length: 18.5 x 18.5
• Cavity Length with End Inserts: 14.375 x 14.375
• Cavity Length without End Inserts: 16 x 16
• Cavity Depth: 0.75
• Cavity accepts max 0.5 material
• Bar Diameter: 1.5
• Projection from Wall: 2.95
• Wall Mount Diameter: 2.43
• Overall Wall Space: 16.25 x 26.5
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME

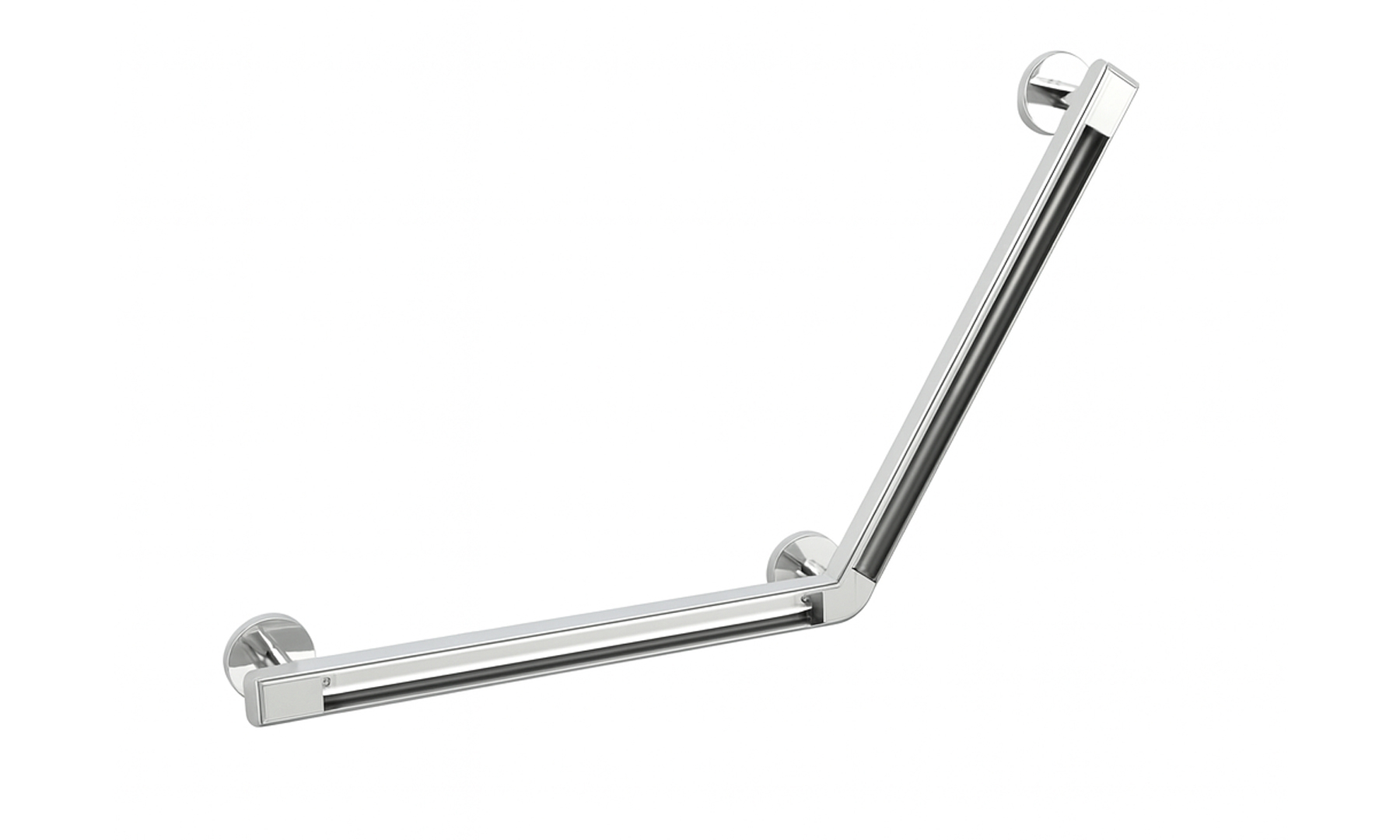

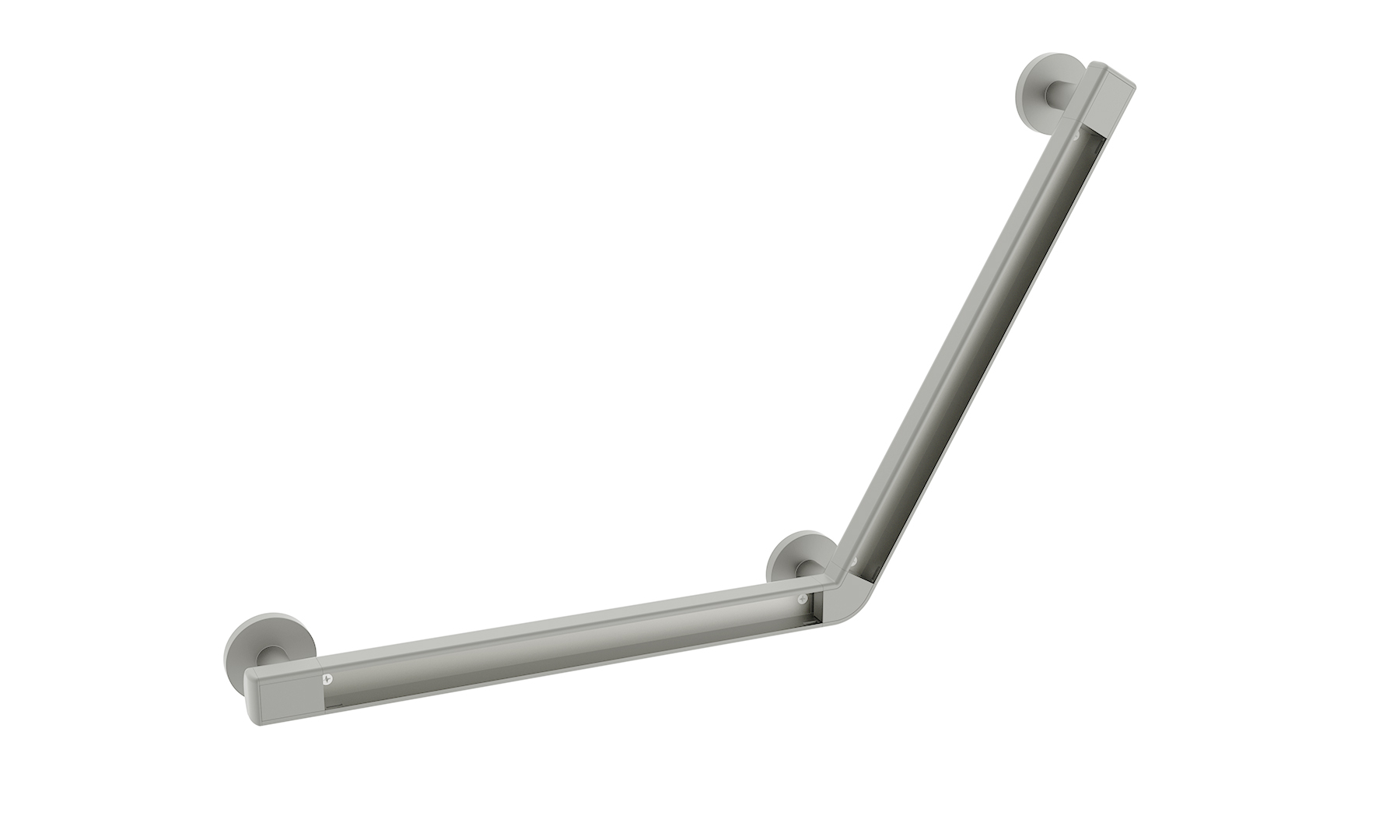

ITEM # 01AN16PC

BRUSHED NICKEL
ITEM # 01AN16BN

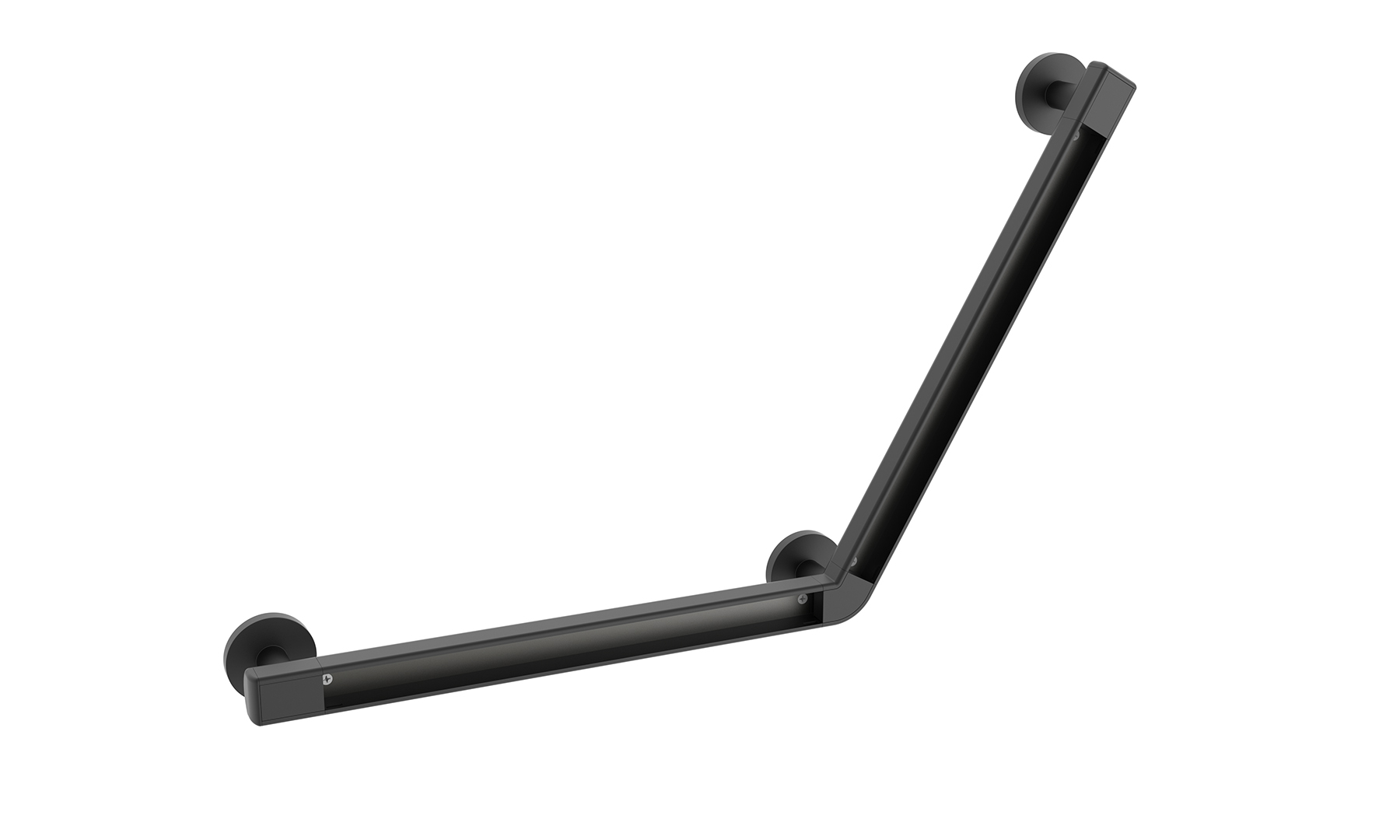

MATTE BLACK
ITEM # 01AN16MB

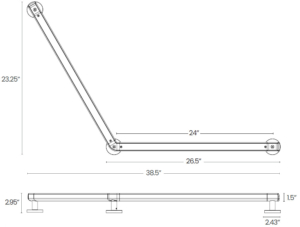

• Center to Center: 24 x 24
• Overall Length: 26.5 x 26.5
• Cavity Length with End Inserts: 22.375 x 22.375
• Cavity Length without End Inserts: 24 x 24
• Cavity Depth: 0.75
• Cavity accepts max 0.5 material
• Bar Diameter: 1.5
• Projection from Wall: 2.95
• Wall Mount Diameter: 2.43
• Overall Wall Space: 23.25 x 38.5
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

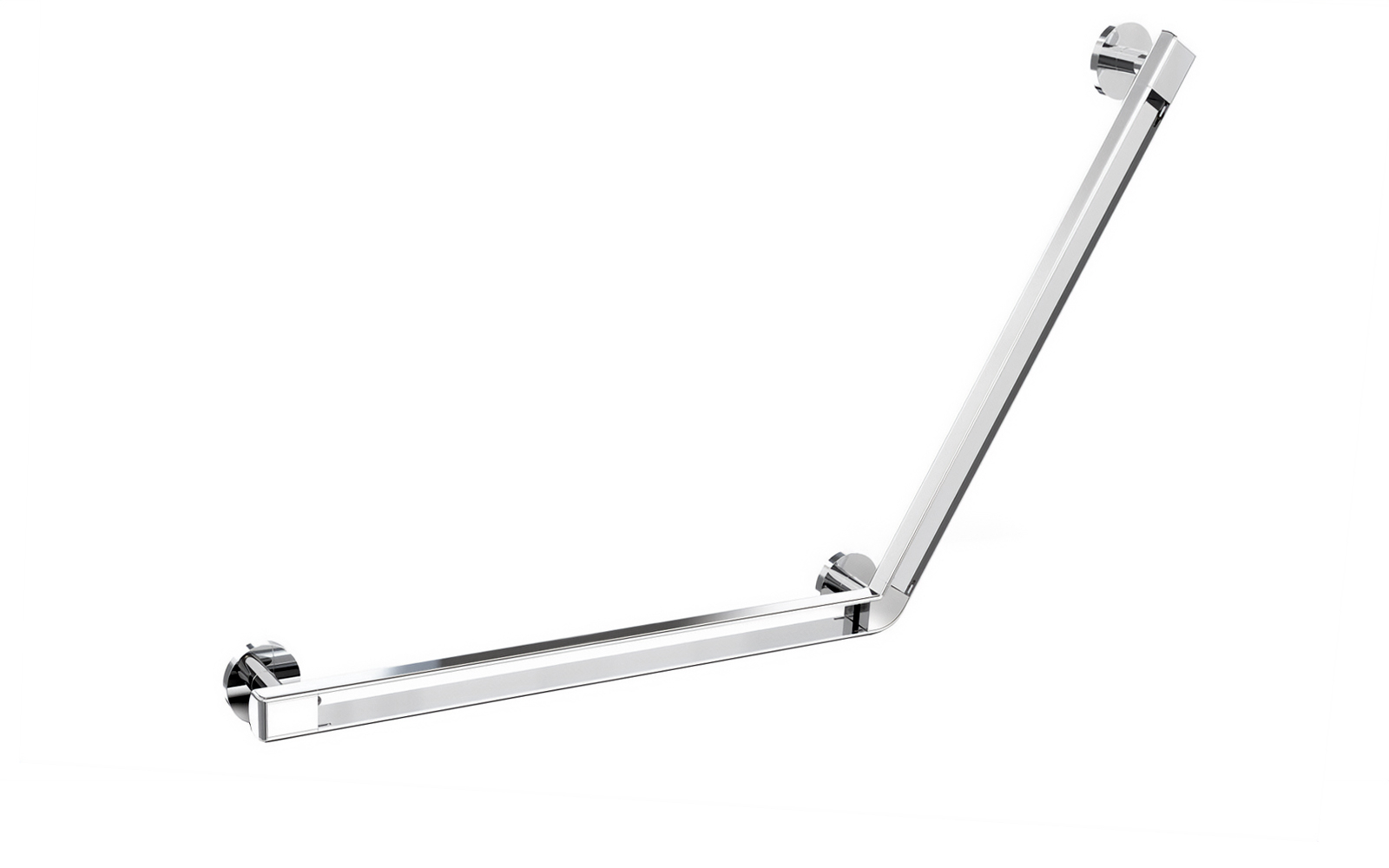

POLISHED CHROME
ITEM # 01AN24PC

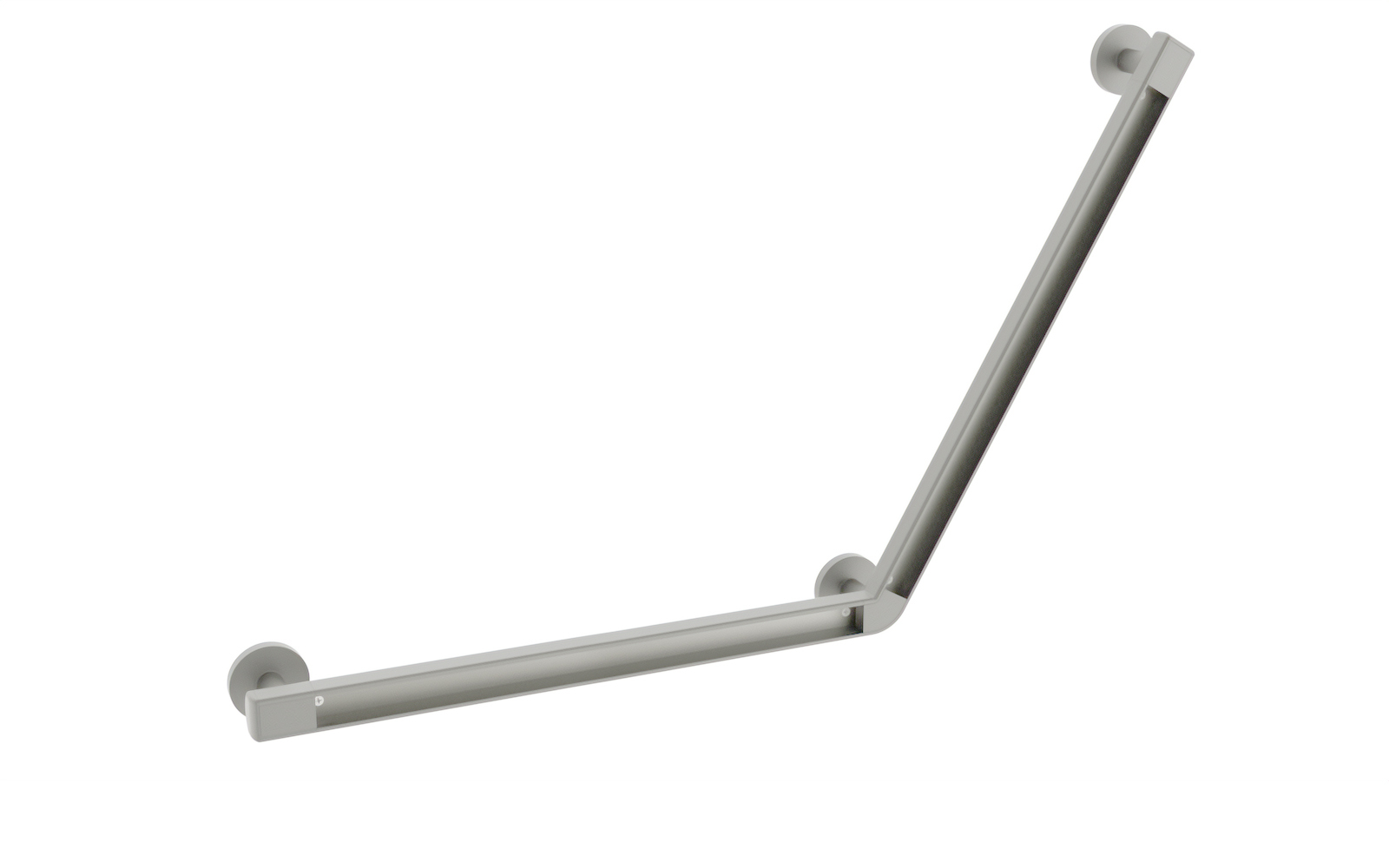

BRUSHED NICKEL
ITEM # 01AN24BN

MATTE BLACK
ITEM 01AN24MB

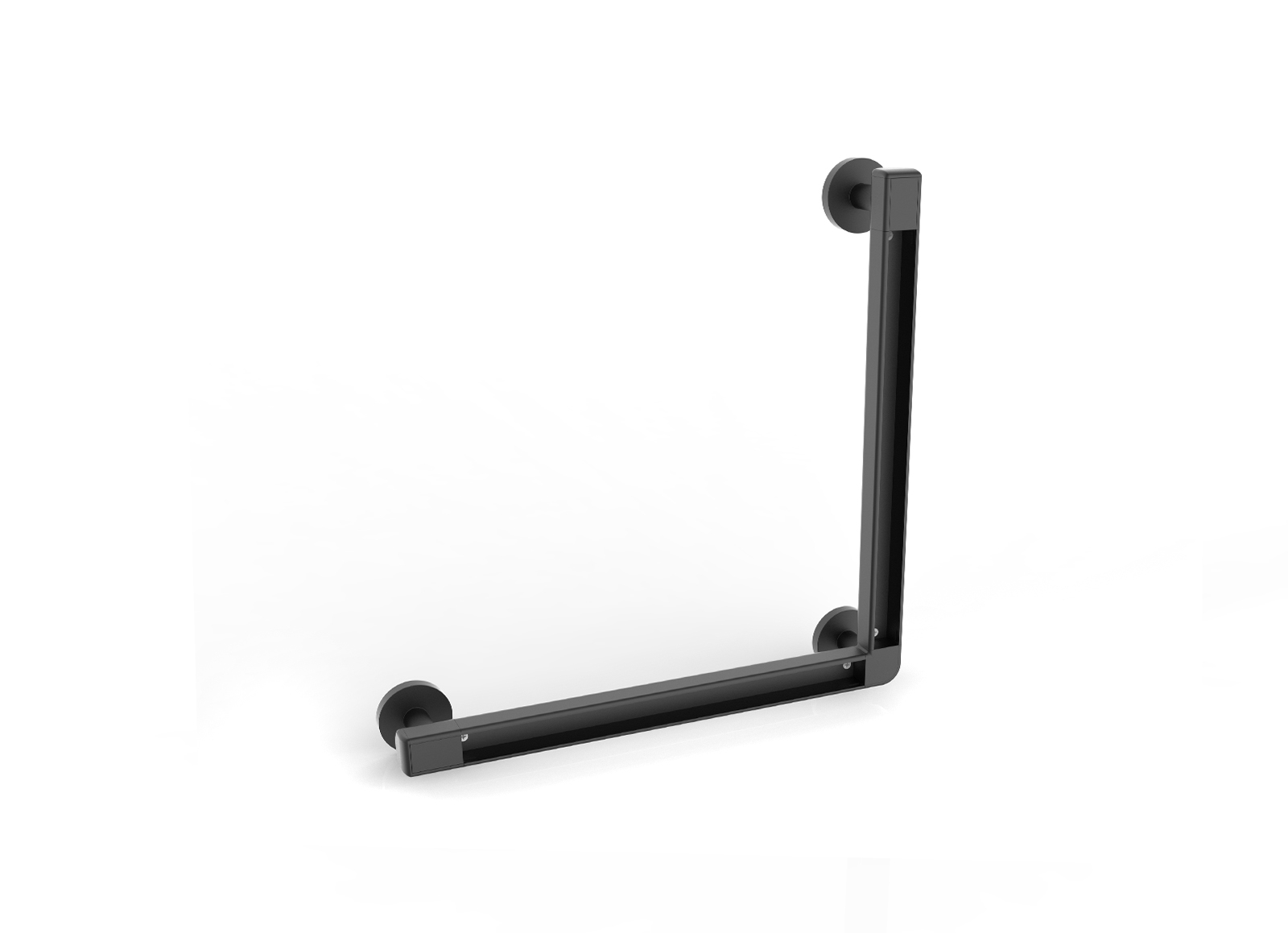

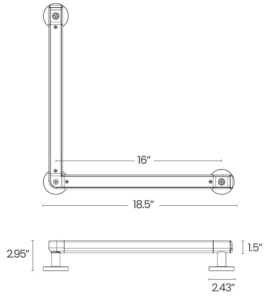

• Center to Center: 16 x 16
• Overall Length: 18.5 x 18.5
• Cavity Length with End Inserts: 14.375 x 14.375
• Cavity Length without End Inserts: 16 x 16
• Cavity Depth: 0.75
• Cavity accepts max 0.5 material
• Bar Diameter: 1.5
• Projection from Wall: 2.95
• Wall Mount Diameter: 2.43
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME

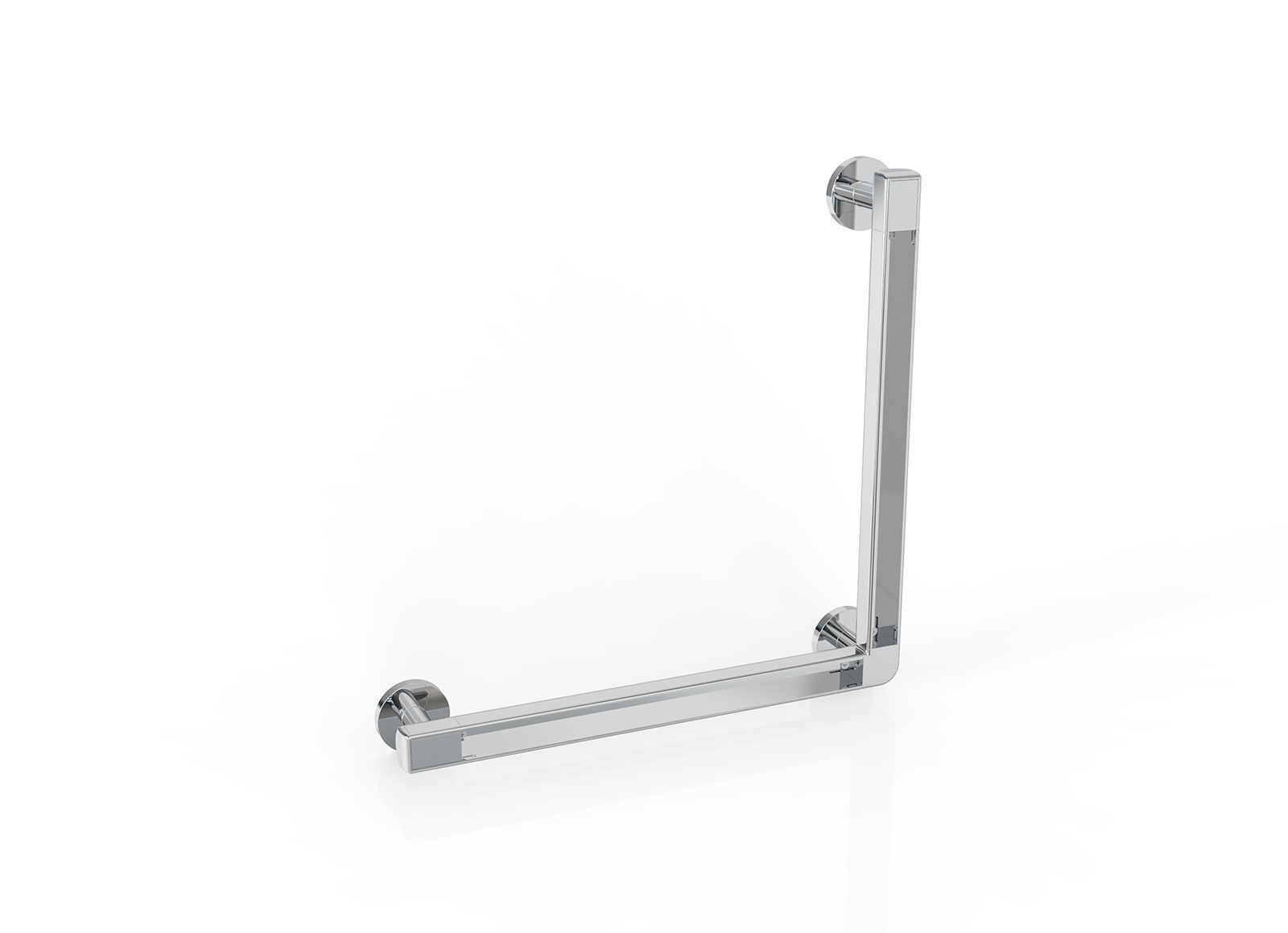

ITEM # 01LS16PC

BRUSHED NICKEL
ITE #01LS16BN

MATTE BLACK
ITEM # 01LS16MB

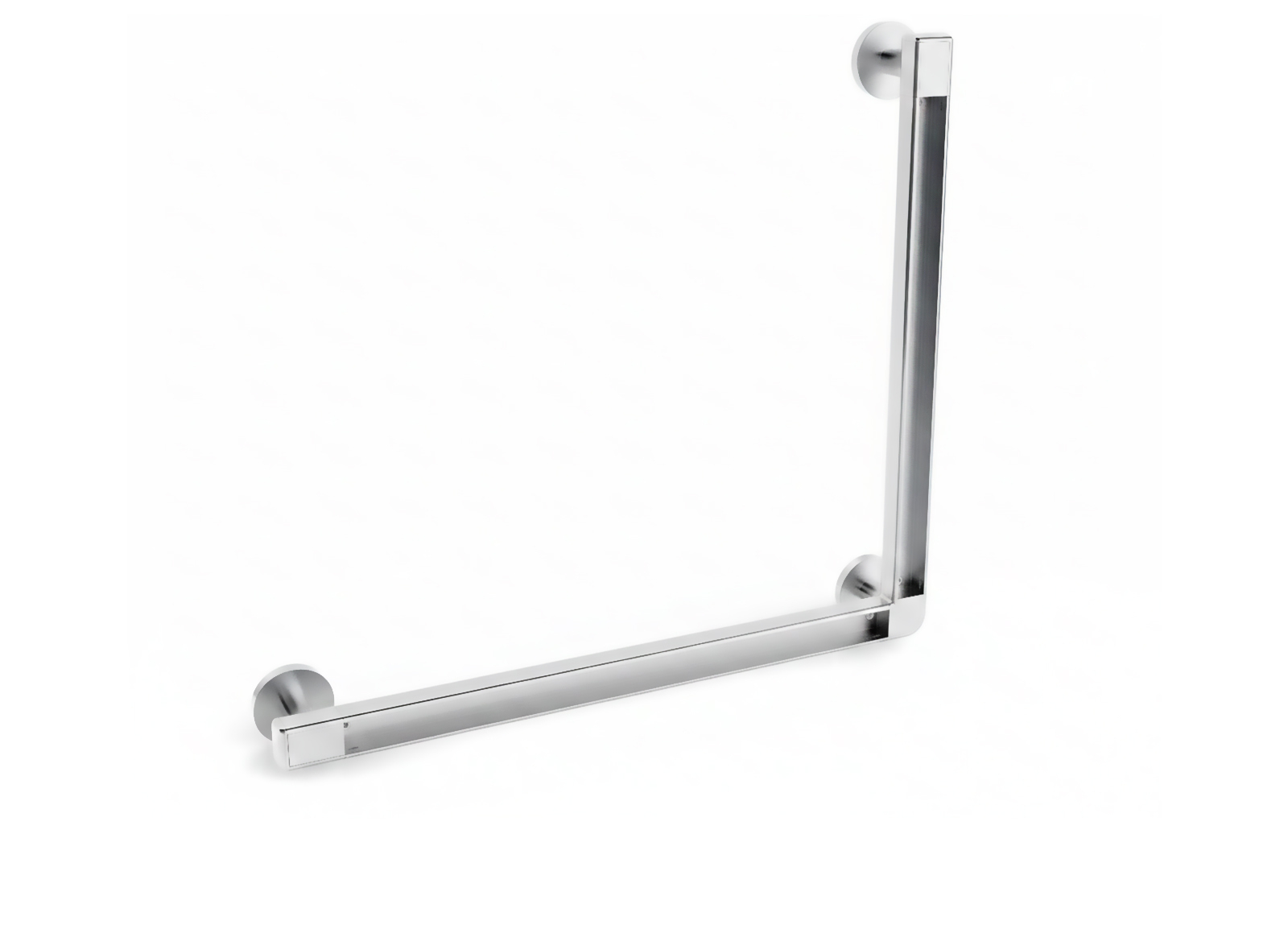

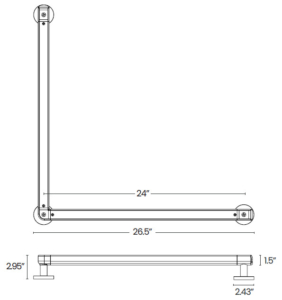

• Center to Center: 24 x 24
• Overall Length: 26.5 x 26.5
• Cavity Length with End Inserts: 22.375 x 22.375
• Cavity Length without End Inserts: 24 x 24
• Cavity Depth: 0.75
• Cavity accepts max 0.5 material
• Bar Diameter: 1.5
• Projection from Wall: 2.95
• Wall Mount Diameter: 2.43
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME

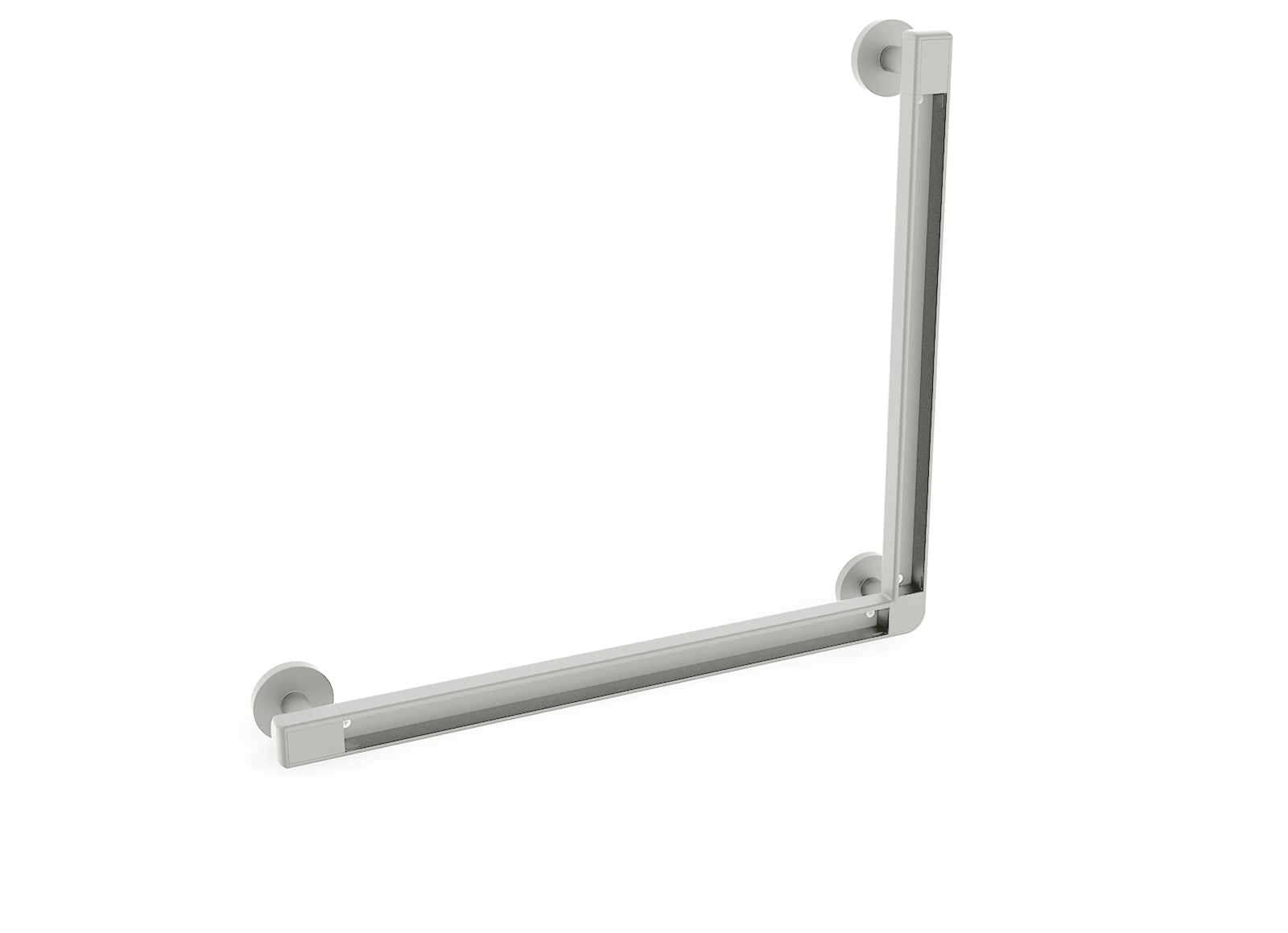

ITEM # 01LS24PC

BRUSHED NICKEL
ITEM # 01LS24BN

MATTE BLACK
ITEM # 01LS24MB

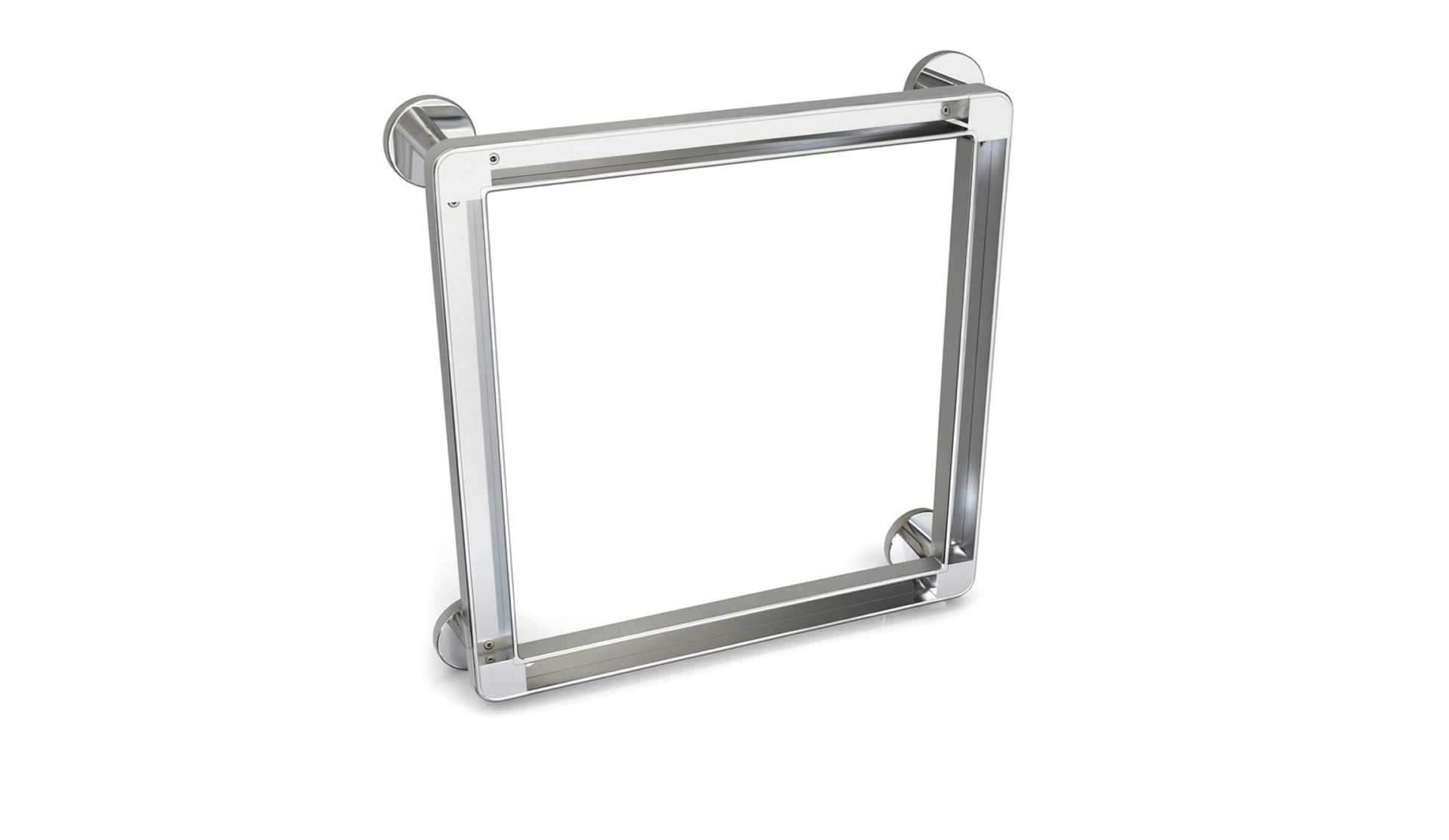

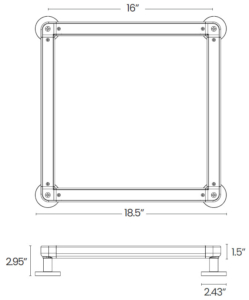

• Center to Center: 16 x 4
• Overall Length: 18.5 x 4
• Cavity Length: 14.375 x 4
• Cavity Depth: 0.75
• Cavity accepts max 0.5 material
• Bar Diameter: 1.5
• Projection from Wall: 2.95
• Wall Mount Diameter: 2.43
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
ITEM # 01SQ16PC

BRUSHED NICKEL
ITEM # 01SQ16BN

MATTE BLACK
ITEM # 01SQ16MB

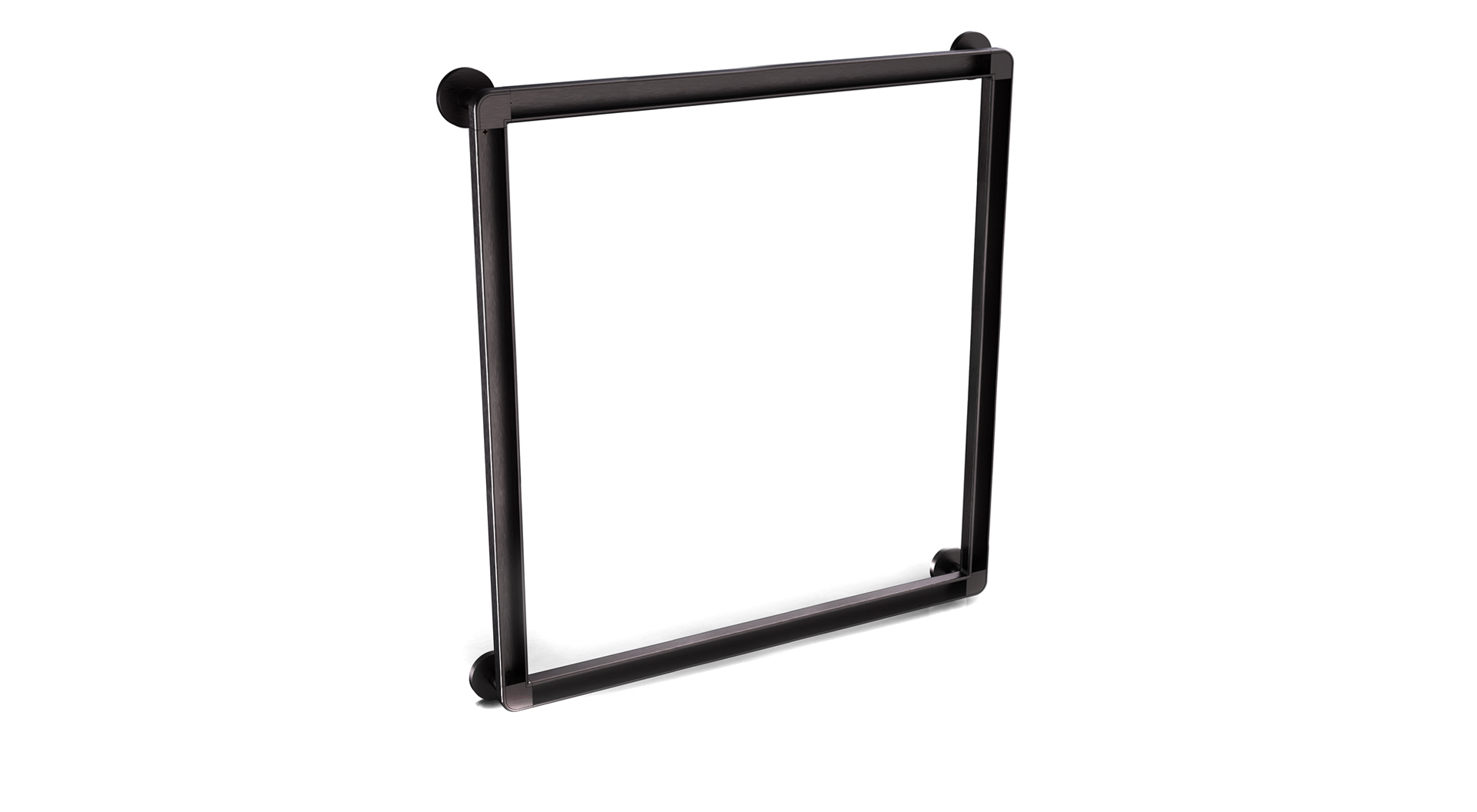

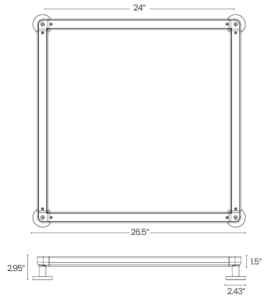

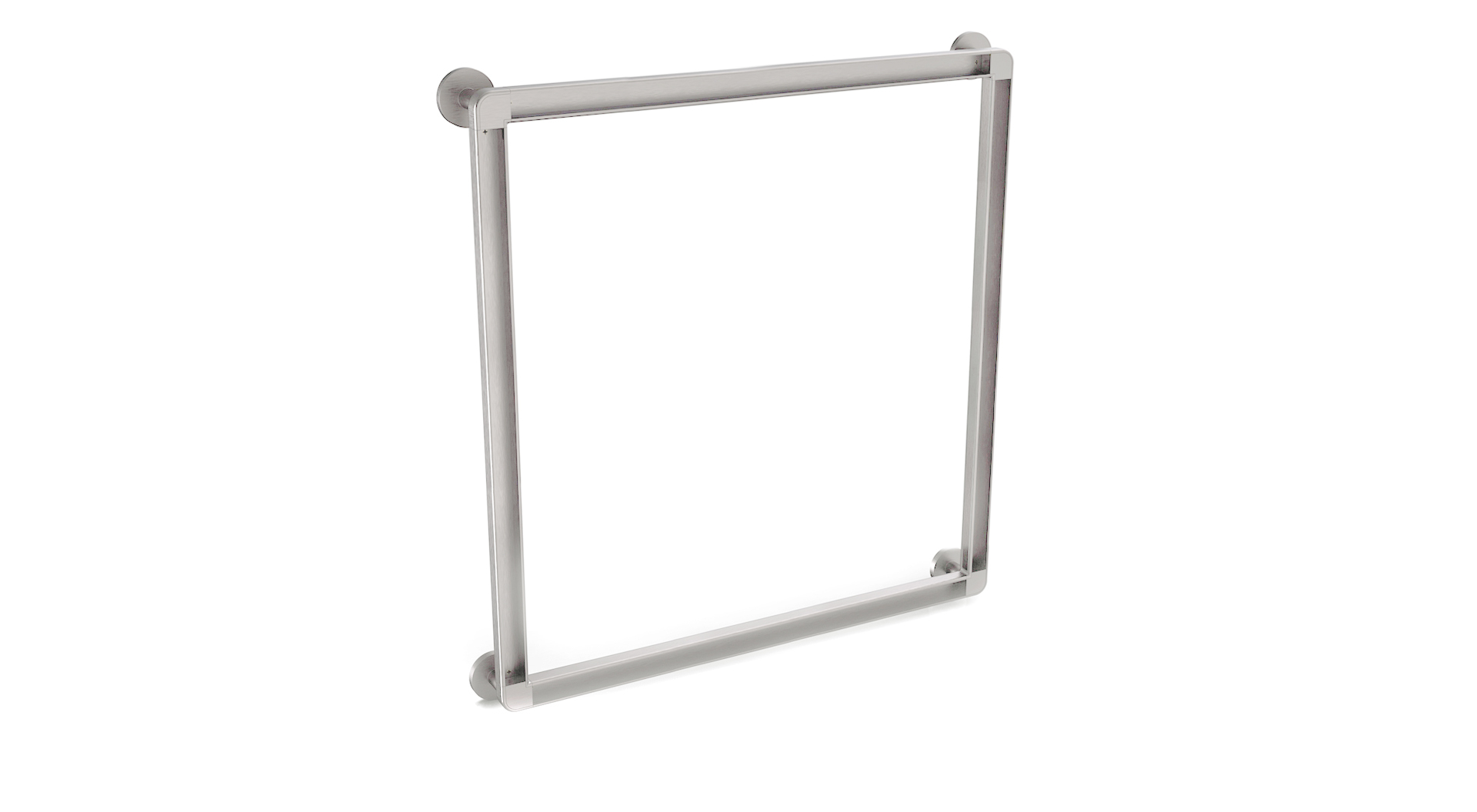

• Center to Center: 24 x 4
• Overall Length: 26.5 x 4
• Cavity Length: 22.375 x 4
• Cavity Depth: 0.75
• Cavity accepts max 0.5 material
• Bar Diameter: 1.5
• Projection from Wall: 2.95
• Wall Mount Diameter: 2.43
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
ITEM # 01SQ24PC

BRUSHED NICKEL
ITEM # 01SQ24BN

MATTE BLACK
ITEM # 01SQ24MB
